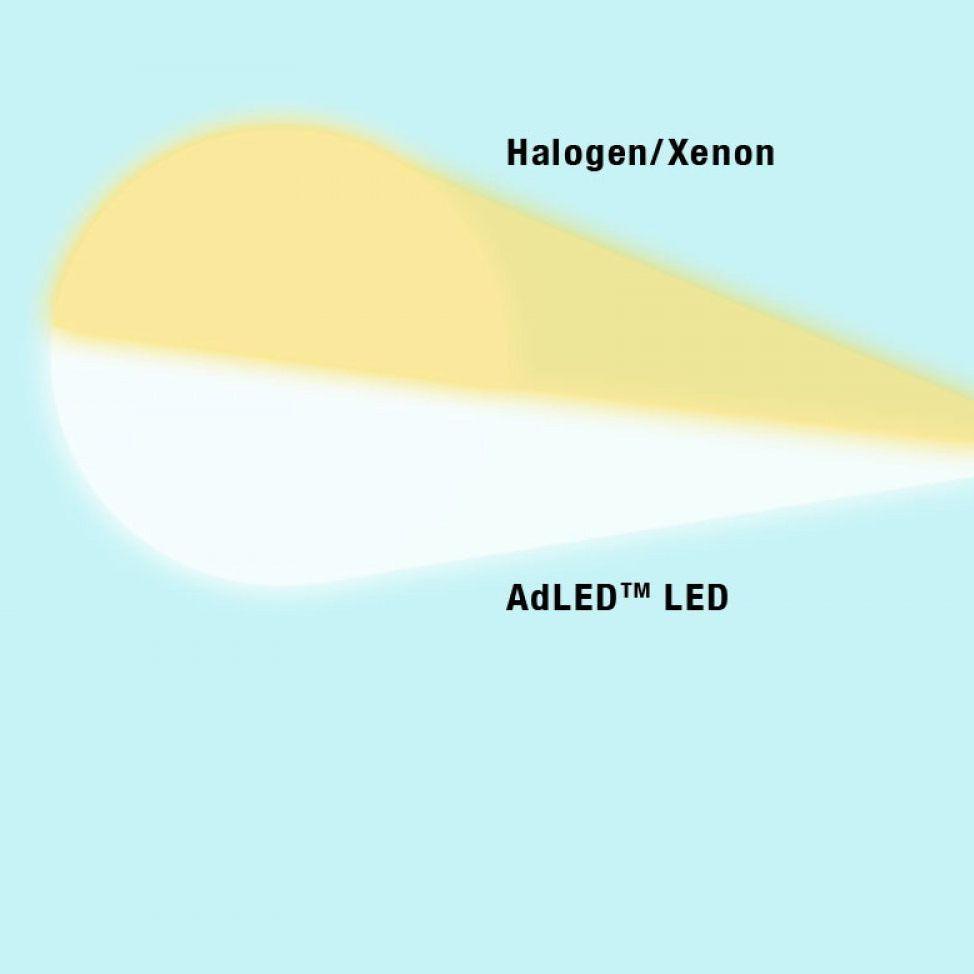

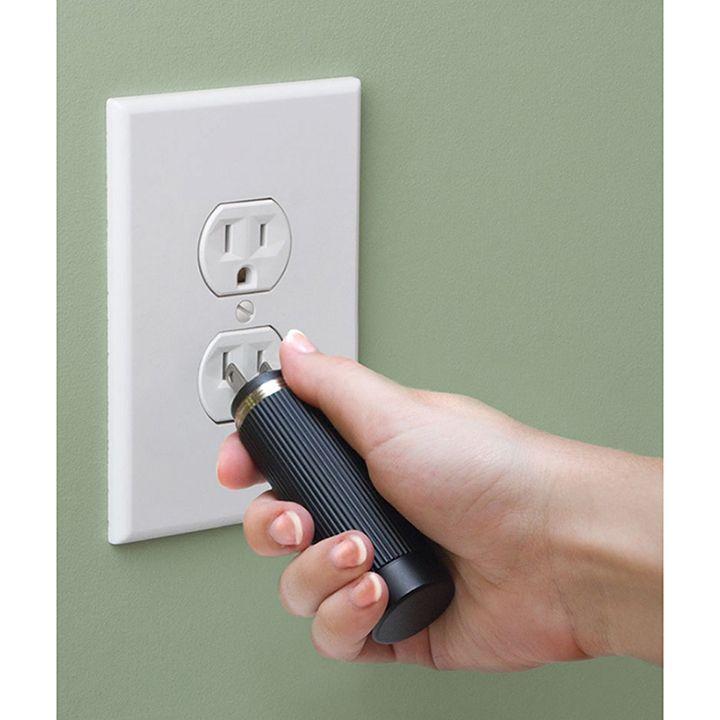

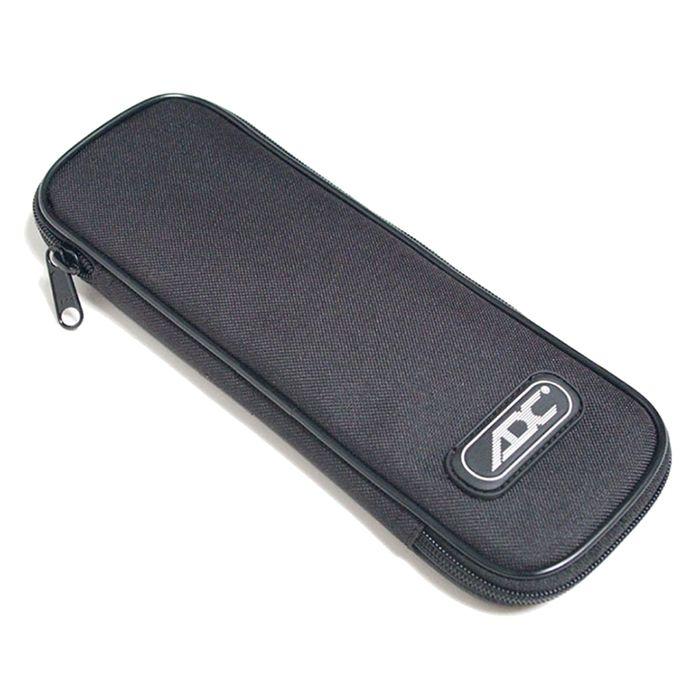

The ADC Diagnostix 5416 3.5V Portable Throat Illuminator includes the throat illuminator head, a plug-in rechargeable Li-ion battery handle, and a zippered padded nylon case. The top half of the handle unscrews to access the wall plug which is available in US or Euro fittings. Choose from halogen/xenon or high-performance AdLED illumination.

Warranty: 2 Years (AdLED lamp carries a lifetime warranty).

The throat illuminator is produced for examination of the oral cavity and pharynx in combination with commercial wooden and plastic blades.

Features

ADC Diagnostix 5416 3.5V Portable Throat Illuminator Features

• ADC Diagnostix 5416 3.5V Portable Throat Illuminator Configurations:

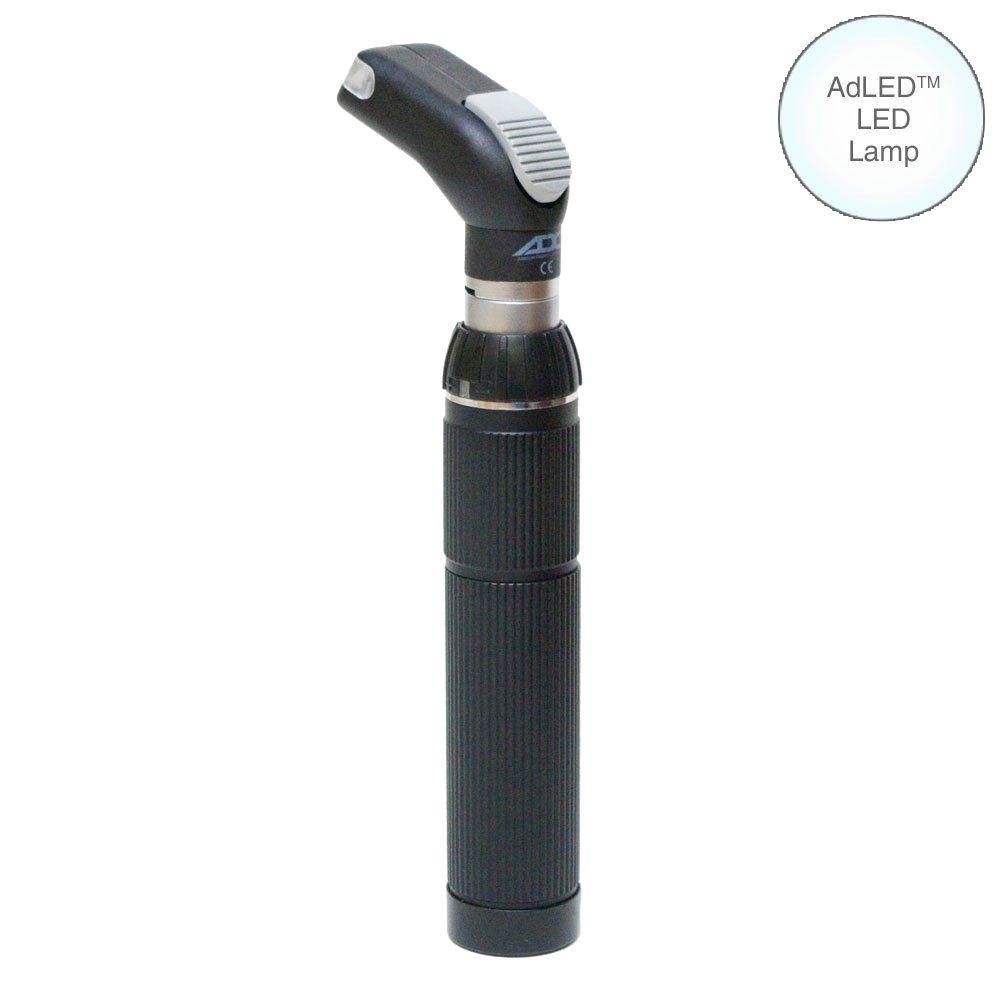

  • 3.5V Portable Throat Illuminator with LED Lamp (#5416L).
  • 3.5V Portable Throat Illuminator with LED Lamp and European Plug (#5416L-EU).

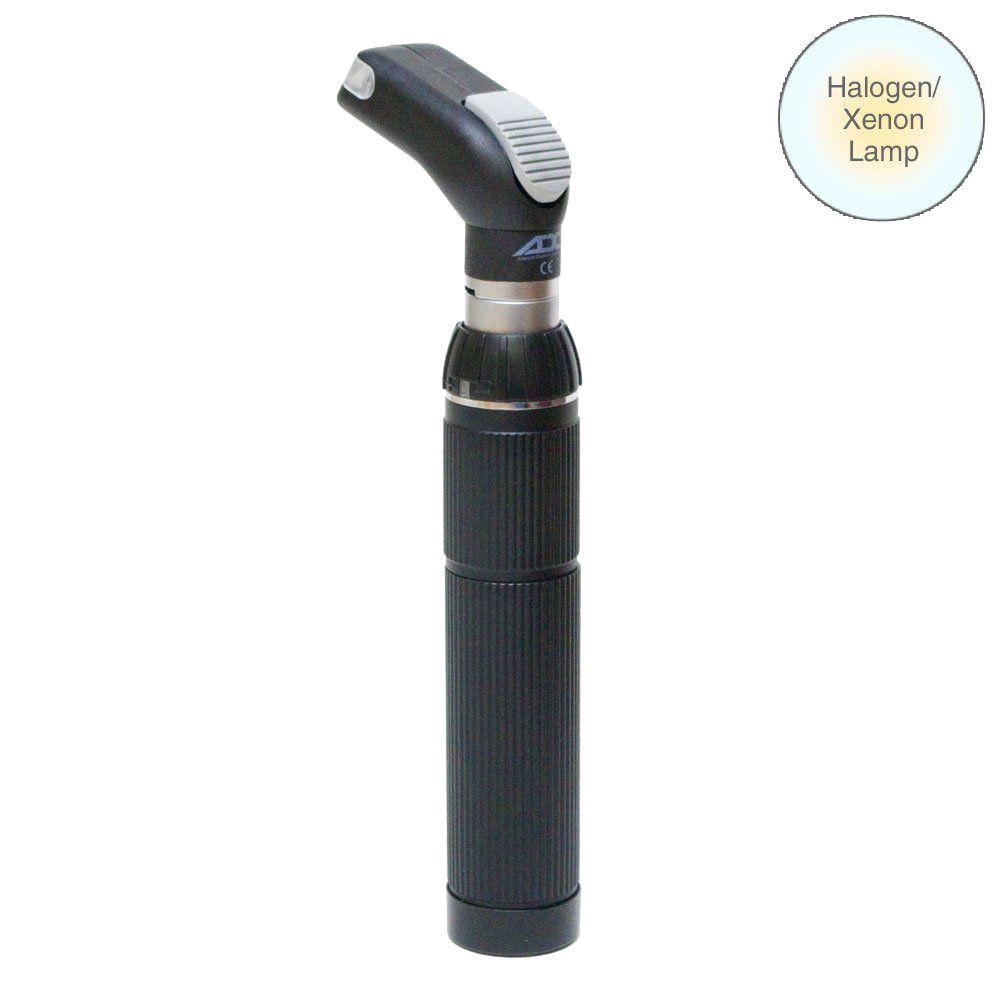

  • 3.5V Portable Throat Illuminator with Halogen/Xenon Lamp (#5416X).
  • 3.5V Portable Throat Illuminator with Halogen/Xenon Lamp and European Plug (#5416X-EU).
• ADC Diagnostix 5416 3.5V Portable Throat Illuminator Head Features:
  • PMMA light transmission (similar to Fiberoptic) for unobstructed view of oral cavity.
  • Tongue blade holder facilitates examination of the mouth and throat.
  • Eject button discards used tongue blade.
  • Universal bayonet mount for compatibility with other brands of 3.5V power supply handles.
  • Anti-theft locking feature is standard.

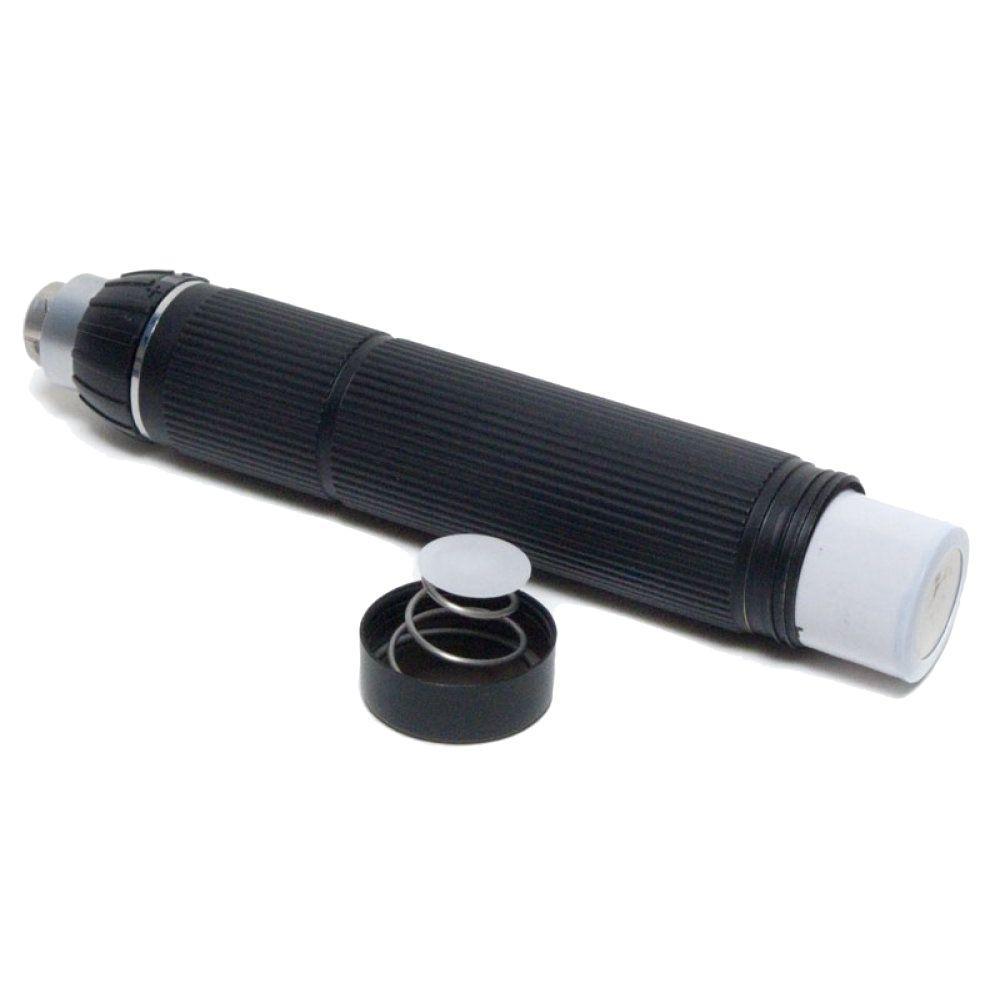

• ADC Diagnostix 5416 3.5V Portable Throat Illuminator Battery Handle Features:
  • C sized handle with 1400mAh Li-ion battery.
  • CNC machined from solid brass, the handle is chrome plated in black with a ribbed surface for a sure grip.
  • Adtronic electronic reostatic light intensity control provides infinite continuous control and auto off feature after 2 minutes.
  • Li-ion battery provide 2-3 hours continuous use with Xenon, 30 hours use with LED when charged for 24 hours. Up to 1200 charge cycles.
  • Bayonet instrument mount is compatible with all major brands of 3.5V instrument heads.
