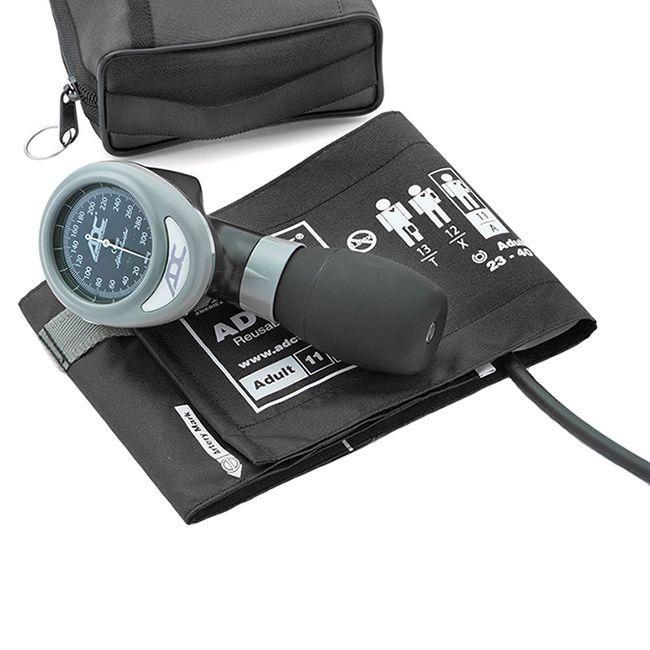

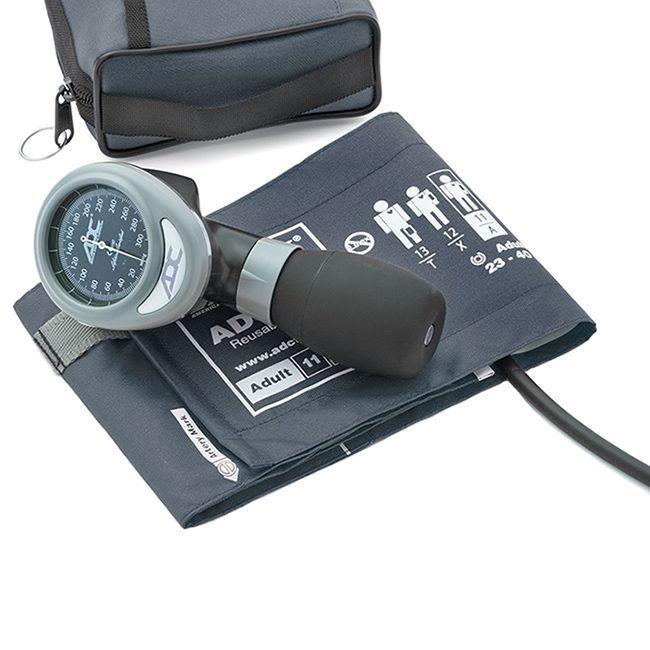

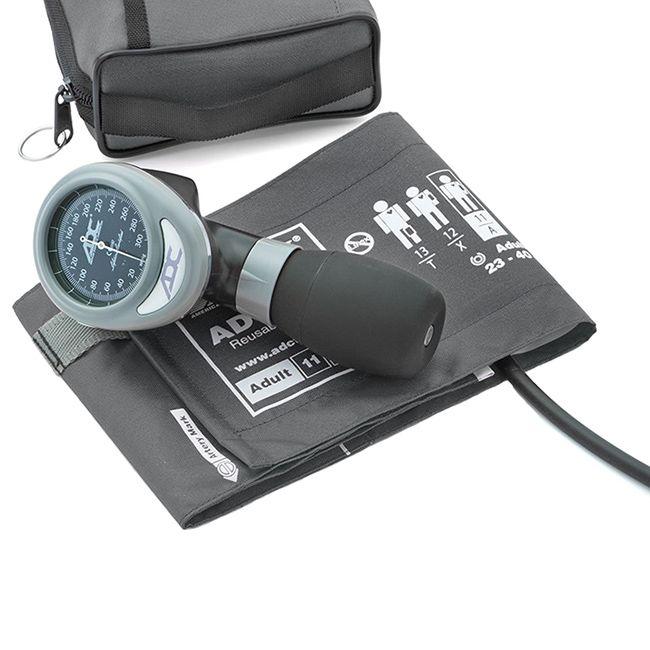

The ADC Diagnostix 788 Palm Aneroid Sphygmomanometer includes a revolutionary palm style manometer, an Adcuff Nylon Cuff, and an extra-large, color-matched, dual pocket carry case.

Warranty: 3 Years (Manometer carries a lifetime calibration warranty).

Features

ADC Diagnostix 788 Palm Aneroid Sphygmomanometer Features

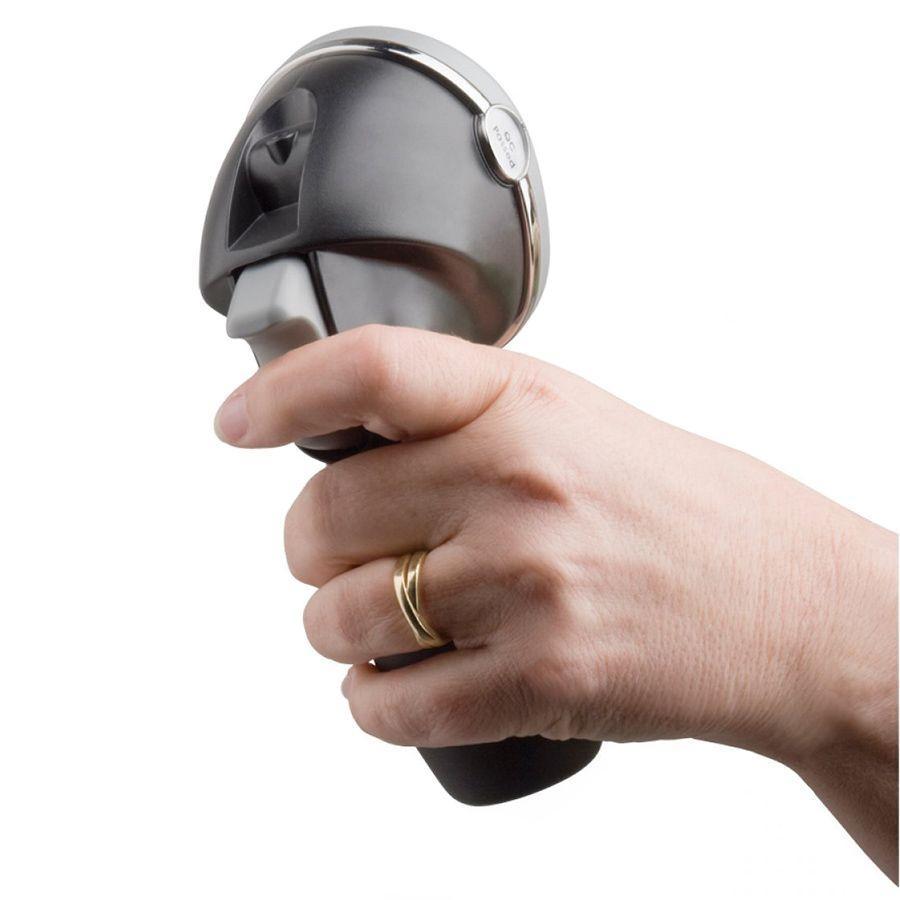

• Revolutionary palm style manometer (#804N) with integral bulb features a trigger style air release valve for one-hand convenience.
• Precision crafted 300 mm Hg Japanese engineered movement tested to 50,000 cycles.
• Movement housed in a zinc cage that suspends within the polymer housing for enhanced shock resistance.
• Ambidextrous infinite control trigger release air valve.
• Quick release luer slip connector.

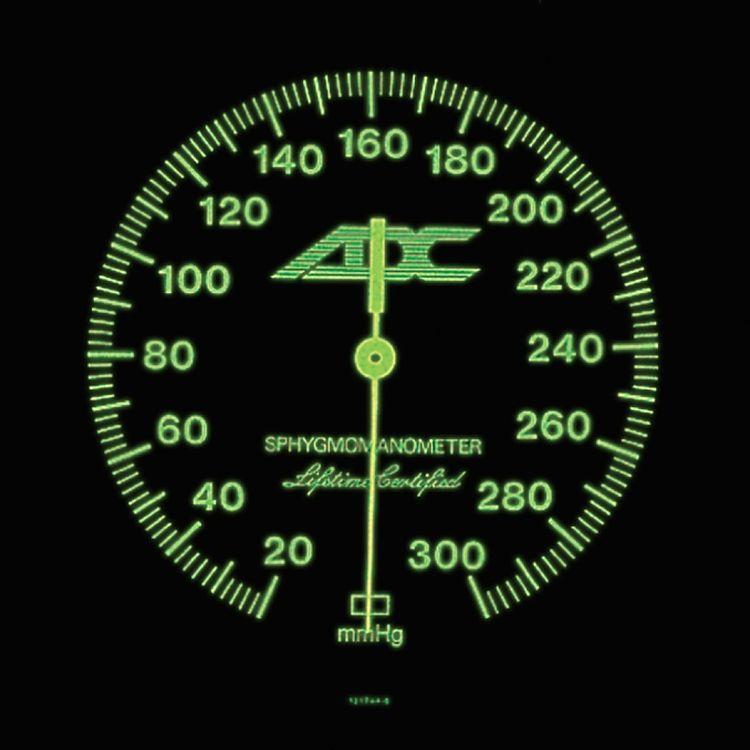

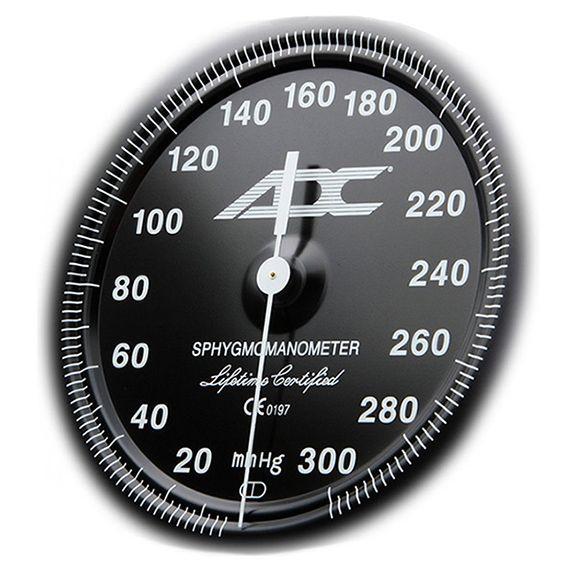

• Luminescent dial features bold numerals and extended graduation marks for easy reading in all light conditions and from virtually any angle.
• Adcuff Nylon Cuff with ADC's proprietary Size Guide marking system, prevents mis-cuffing.
• Meets or exceeds ANSI/AAMI/ISO 81060-1.
• Not made with natural rubber latex.
• Assembled, inspected, and packaged in the U.S.A. from foreign components.
• Available in 11 different cuff colors:

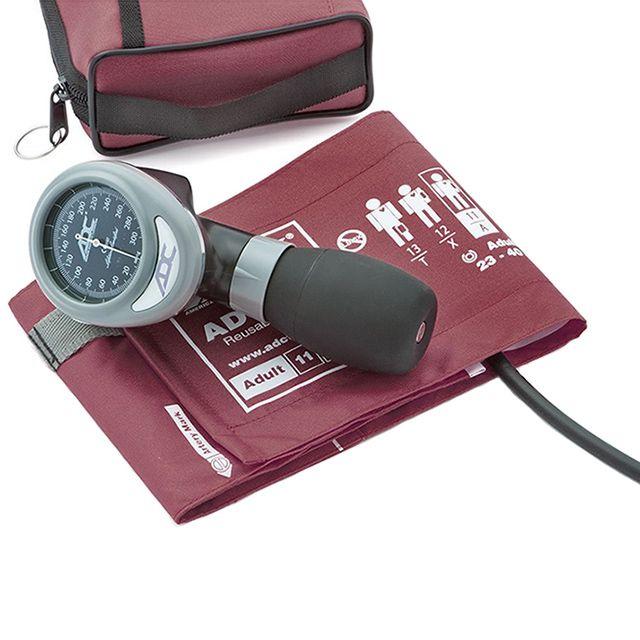

  • Burgundy (#788-11ABD) / Storage Case (#888BD).

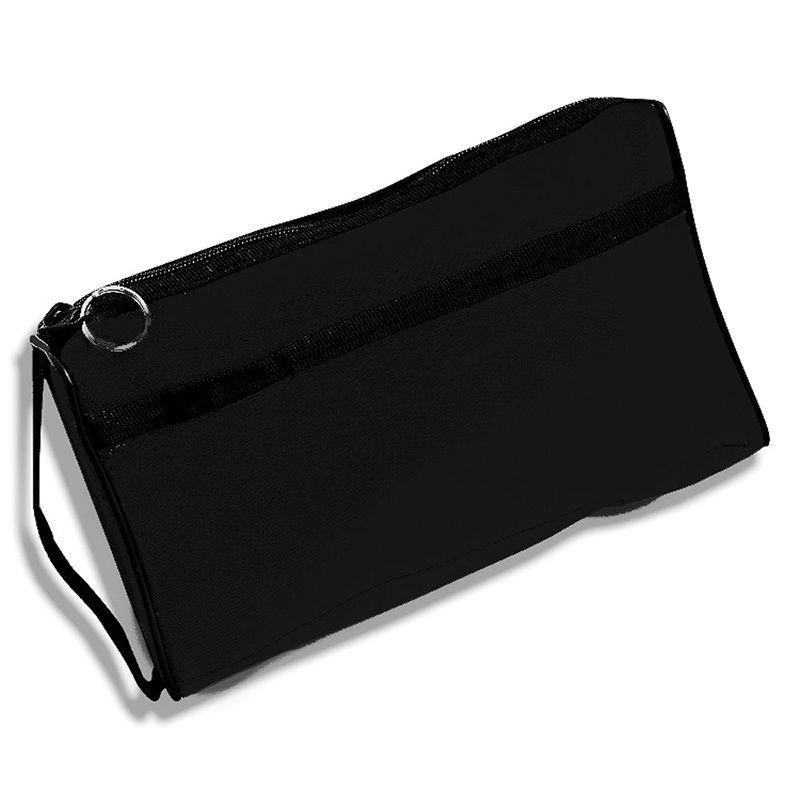

  • Black (#788-11ABK) / Storage Case (#888BK).

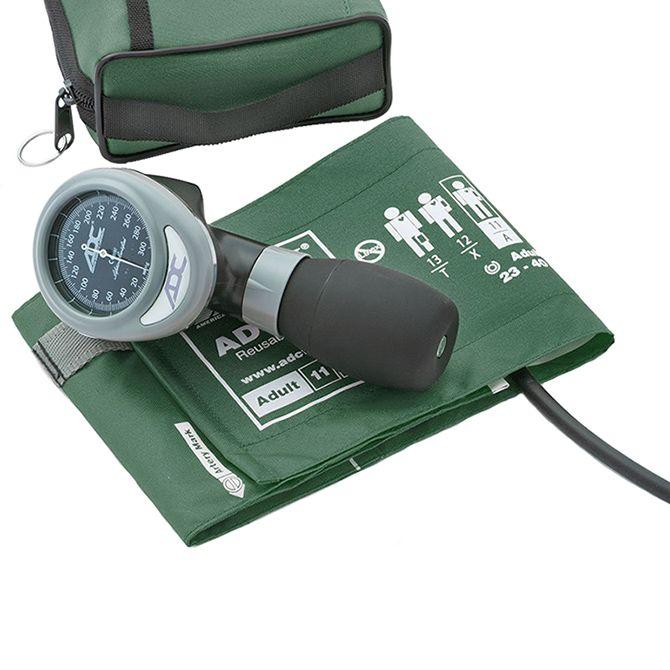

  • Dark Green (#788-11ADG) / Storage Case (#888DG).
  • Gray (#788-11AG) / Storage Case (#888G).

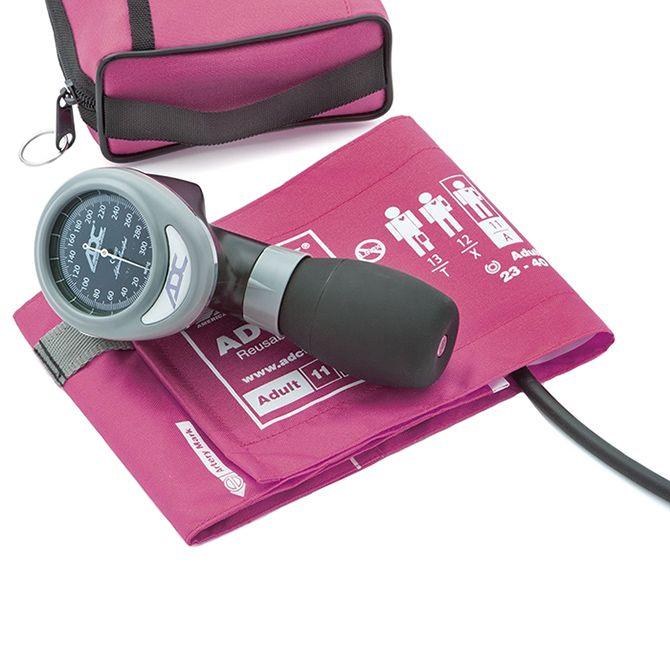

  • Magenta (#788-11AM) / Storage Case (#888M).
  • Navy (#788-11AN) / Storage Case (#888DB).
  • Orange (#788-11AOR) / Storage Case (#888O).
  • Red (#788-11AR) / Storage Case (#888R).
  • Royal Blue (#788-11ARB) / Storage Case (#888RB).
  • Teal (#788-11ATL) / Storage Case (#888TL).

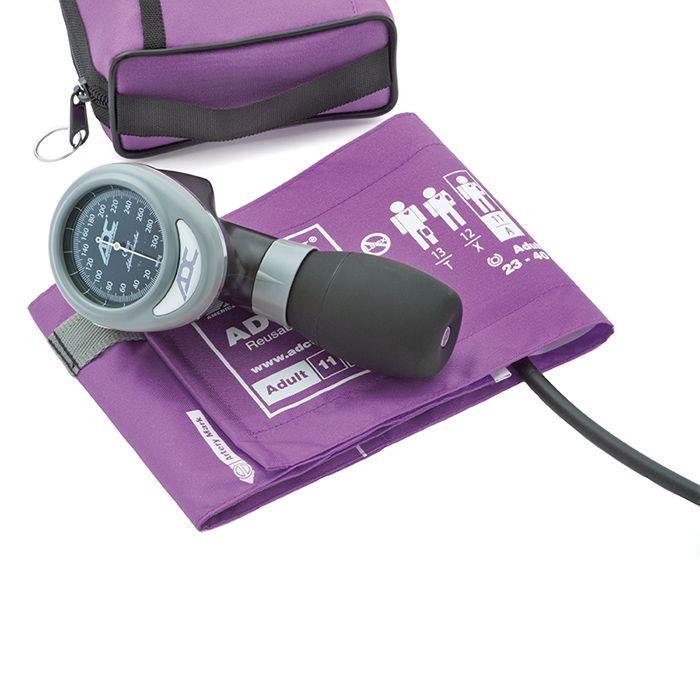

  • Purple (#788-11AV) / Storage Case (#888V).

Specifications

ADC Diagnostix 788 Palm Aneroid Sphygmomanometer Specifications

• Sphyg Type: Pro's Combo.
• Gauge Product Number: #804N.
• Gauge Warranty: Lifetime.
• Sphyg Accuracy: +/-3 mm Hg at 50 degrees F (10 degrees C) - 104 degrees F (40 degrees C).
• Sphyg Accuracy at Extended Temperature Range: +/- 3 mm Hg or 2%. Whichever is greater at < 50 degrees F (10 degrees C) and > 104 degrees F (40 degrees C).
• Storage Temp: -4 degrees F (-20 degrees C) - 131 degrees F (55 degrees C).
• Valve Type: Integral.
• Number of Tubes: 1.
• Cuff Type: ADCUFF.
• Cuff Size: Adult.
• Cuff Range: 9" - 15.7" (23 cm - 40 cm).
• Inflation Warranty: 3 Years.
• Storage Case Dimensions: 10" x 6" x 3" (25.4 cm 15.24 cm 7.62 cm).

Media and Literature

ADC Diagnostix 788 Palm Aneroid Sphygmomanometer Media and Literature

ADC 2017 Product Catalog

ADC Diagnostix Aneroid Sphygmomanometers Instructions for Use

ADC Diagnostix Aneroid Sphygmomanometer Accessories Instructions for Use

ADC Adcuff Literature
