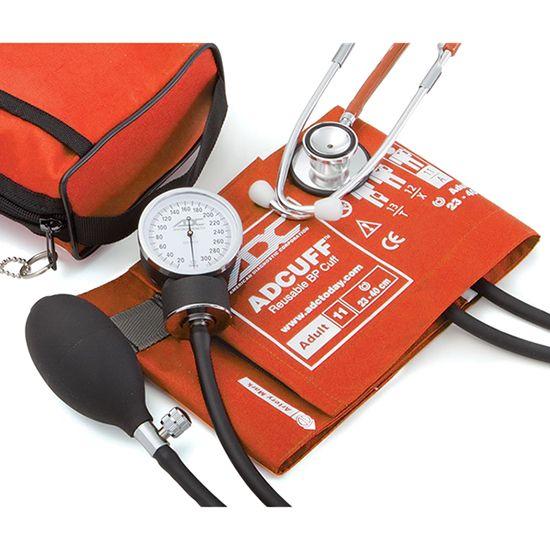

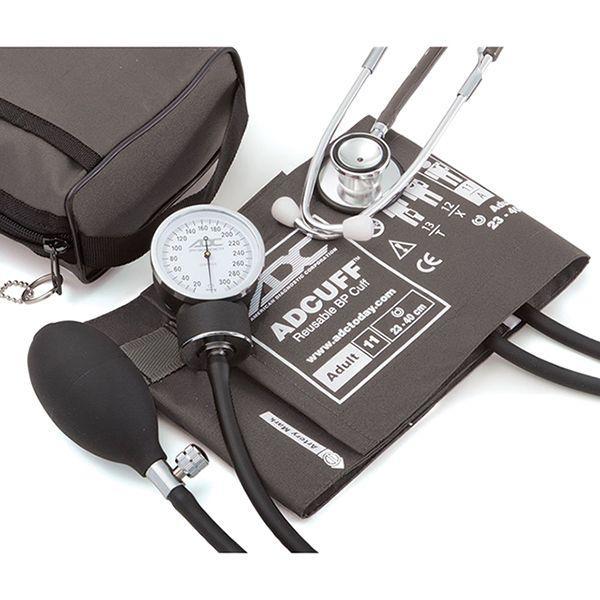

The ADC Pro's Combo II 768-670 Pocket Aneroid/Dual Head Scope Kit includes an ADC Prosphyg 768 Pocket Aneroid Sphygmomanometer and an ADC Proscope 670 Dual Head Stethoscope in an extra-large, color-matched, dual pocket carry case. The ADC Prosphyg 768 Pocket Aneroid Sphygmomanometer includes a black enamel 300 mm Hg manometer, and an adult sized Adcuff Nylon Cuff. The ADC Proscope 670 Dual Head Stethoscope features a combination diaphragm and bell chestpiece.

Warranty:

• ADC Proscope 670 Dual Head Stethoscope: 1 Year.
• ADC Prosphyg 768 Pocket Aneroid Sphygmomanometer: 3 Years (Manometer carries a 20 year calibration warranty).

Features

ADC Pro's Combo II 768-670 Pocket Aneroid/Dual Head Scope Kit Features

• ADC Prosphyg 768 Pocket Aneroid Sphygmomanometer Features:
  • Adcuff Nylon Cuff with ADC's proprietary Size Guide marking system prevents mis-cuffing.

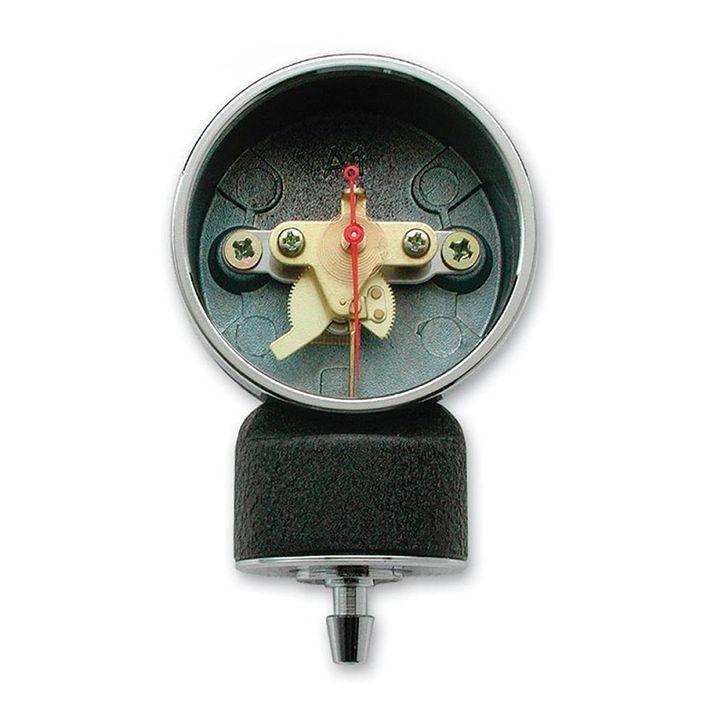

  • Contemporary black enamel 300 mm Hg manometer provides day-in, day-out dependability and exceeds industry standards.
  • Chrome-plated deflation valve.
  • Meets or exceeds ANSI/AAMI/ISO 81060-1.

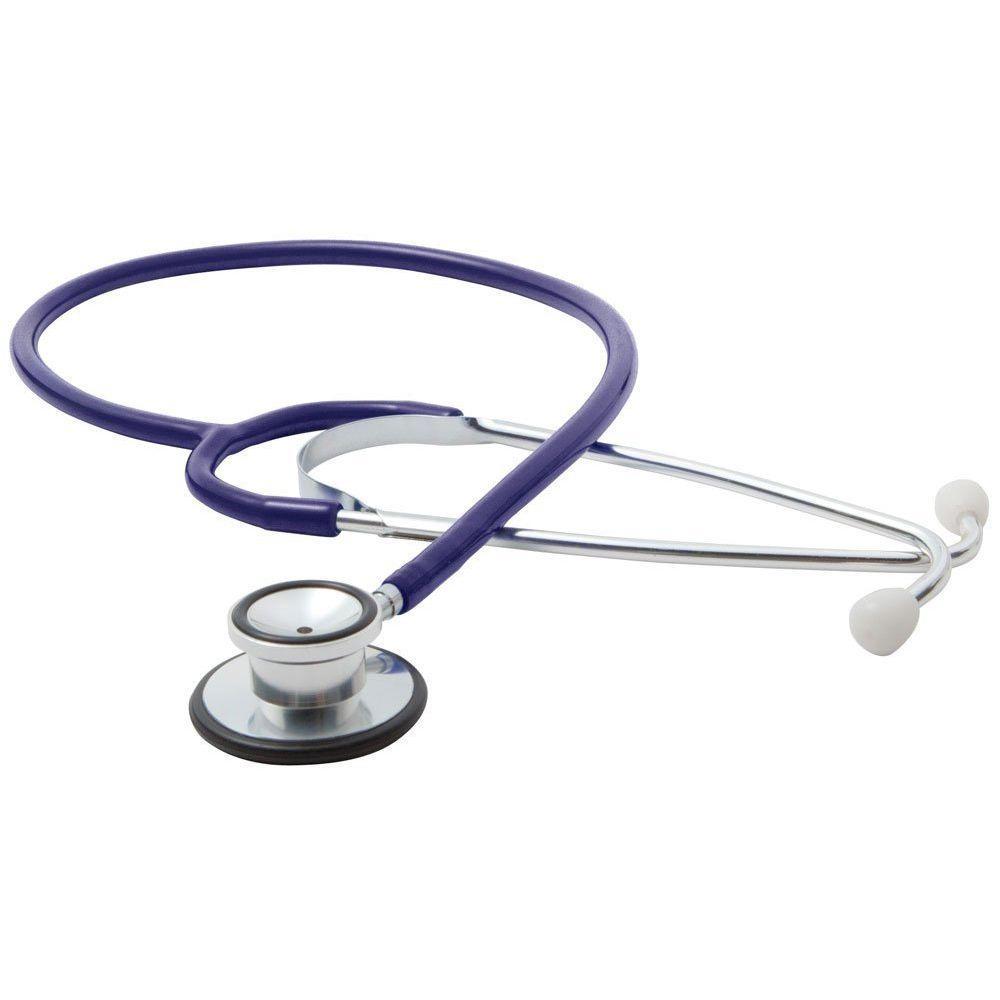

• ADC Proscope 670 Dual Head Stethoscope Features:
  • Lightweight aluminum chestpiece construction.
  • Non-chill bell and diaphragm rim for patient comfort.
  • Proprietary diaphragm enhances acoustic response by 50% over traditional designs.
  • Adjustable aluminum binaurals with PVC eartips.
  • Flexible 21" PVC tubing is made without phthalates.
• Not made with natural rubber latex.
• Assembled, inspected, and packaged in the U.S.A. from foreign components.
• Available in 10 different colors:
  • Burgundy (#768-670-11ABD).
  • Black (#768-670-11ABK).
  • Dark Green (#768-670-11ADG).
  • Magenta (#768-670-11AM).
  • Navy (#768-670-11AN).
  • Orange (#768-670-11AOR).
  • Red (#768-670-11AR).
  • Royal Blue (#768-670-11ARB).
  • Teal (#768-670-11ATL).
  • Purple (#768-670-11AV).

Specifications

ADC Pro's Combo II 768-670 Pocket Aneroid/Dual Head Scope Kit Specifications

• ADC Prosphyg 768 Pocket Aneroid Sphygmomanometer Specifications:
  • Sphyg Type: Pro's Combo.
  • Gauge Product Number: #808N.
  • Gauge Warranty: 20 Years.
  • Sphyg Accuracy: +/-3 mm Hg at 50 degrees F (10 degrees C) - 104 degrees F (40 degrees C).
  • Sphyg Accuracy at Extended Temperature Range: +/- 3 mm Hg or 2%. Whichever is greater at < 50 degrees F (10 degrees C) and > 104 degrees F (40 degrees C).
  • Storage Temp: -4 degrees F (-20 degrees C) - 131 degrees F (55 degrees C).
  • Valve Type: Standard.
  • Number of Tubes: 2.
  • Cuff Type: ADCUFF.
  • Cuff Size: Adult.

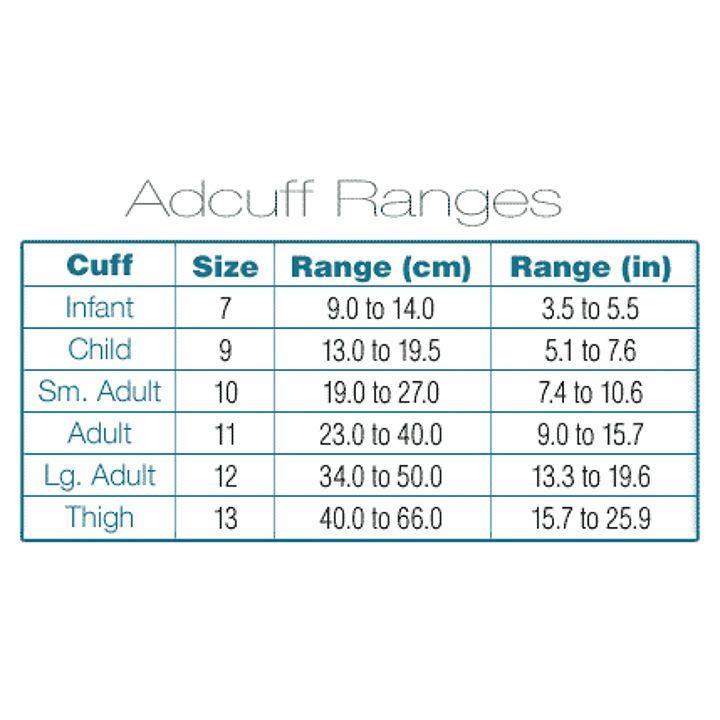

  • Cuff Range: 9" - 15.7" (23 cm - 40 cm).
  • Inflation Warranty: 3 Years.
• ADC Proscope 670 Dual Head Stethoscope Specifications:
  • Chestpiece Type: Combination.
  • Chestpiece Material: Aluminum.
  • Chestpiece Finish: Anodized.
  • Chestpiece Weight: 1.3 oz (37.5 g).
  • Diaphragm Diameter: 1.75" (4.45 cm).
  • Diaphragm Material: PVC.
  • Diaphragm Type: Standard.
  • Bell Diameter: 0.75" (3 cm).
  • Headset Type: Lightweight.
  • Headset Material: Aluminum.
  • Headset Finish: Anodized.
  • Tubing Length: 21" (55.5 cm).
  • Total Length: 32.25" (81 cm).
  • Total Weight: 3 oz (85.6 g).
• Storage Case Dimensions: 9" x 5" x 2" (22.86 cm 12.7 cm 5.08 cm).
