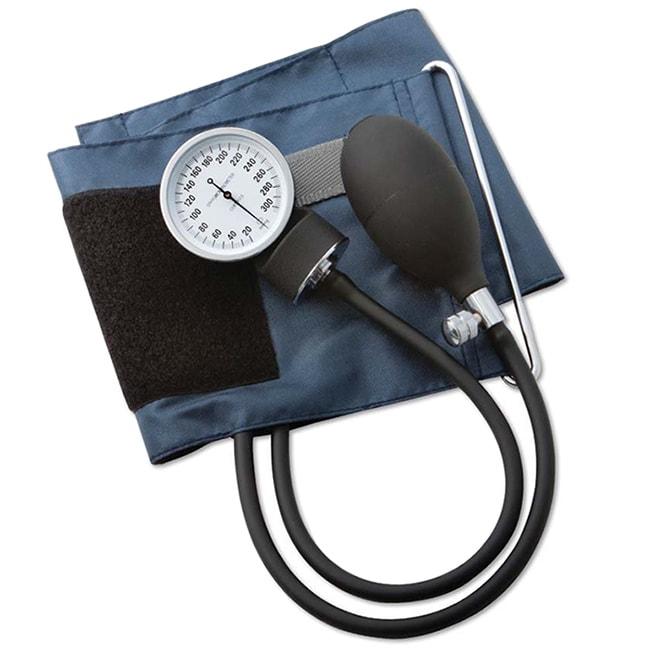

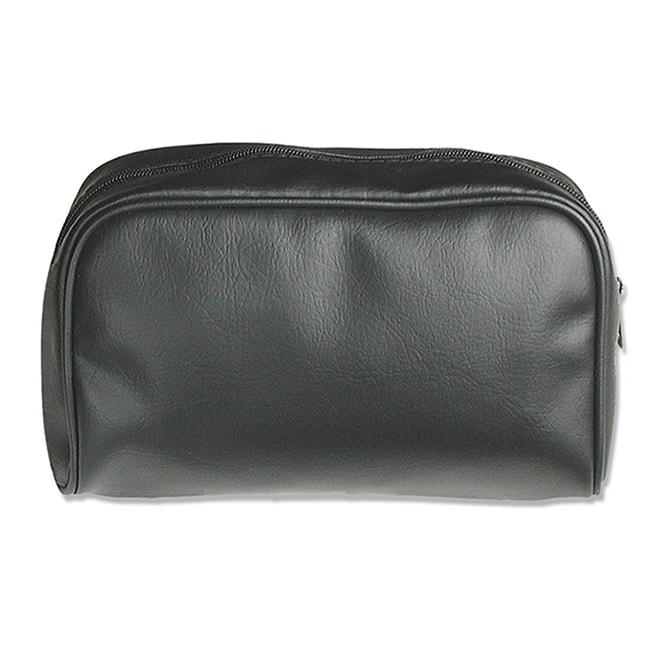

The ADC Prosphyg 785 Pocket Aneroid Sphygmomanometer includes a black enamel 300 mm Hg manometer (#809N), a navy colored nylon cuff, operating instructions, and a black leatherette carrying case with zipper (#880).

Warranty: 1 Year (Manometer carries a 10 year calibration warranty).

Features

ADC Prosphyg 785 Pocket Aneroid Sphygmomanometer Features

• Nylon D-Ring self-adjusting cuff for one-handed cuff application is available in three different cuff sizes.
• Chrome-plated deflation valve.
• Meets or exceeds ANSI/AAMI/ISO 81060-1.
• Not made with natural rubber latex.
• Assembled, inspected, and packaged in the U.S.A.

Specifications

ADC Prosphyg 785 Pocket Aneroid Sphygmomanometer Specifications

• Sphyg Type: Home Kit.
• Gauge Product Number:┬á#809N.
• Gauge Warranty:┬á10 Years.
• Sphyg Accuracy: +/-3 mm Hg at 50┬║ F (10 degrees C) - 104 degrees F (40 degrees C).
• Sphyg Accuracy at Extended Temperature Range: +/- 3 mm Hg or 2%. Whichever is greater at less than 50 degrees F (10 degrees C) and greater than 104 degrees F (40 degrees C).
• Storage Temp: -4 degrees F (-20 degrees C) - 131 degrees F (55 degrees C).
• Valve Type:┬áStandard.
• Number of Tubes: 2.
• Cuff Type:┬áD-Bar.
• Cuff Color:┬áNavy.
• Inflation Warranty:┬á1 Year.
• Storage Case Item Number: #880.

Sizes

ADC Prosphyg 785 Pocket Aneroid Sphygmomanometer Sizes

Literature

ADC Prosphyg 785 Pocket Aneroid Sphygmomanometer Literature

ADC 2017 Product Catalog

ADC Prosphyg Aneroid Sphygmomanometers Instructions for Use
