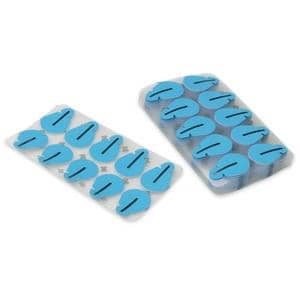

The Ambu BlueSensor SU ECG Electrode is the world's first tab electrode featuring a wet gel. It combines wet gel and superior quick adhesion to provide optimal signal quality during 12-lead diagnostic resting applications. The special occlusive backing material makes the electrode resistant to liquids. Extremely easy to use, it comes with ten SU electrodes packed on a single liner so there is no need to peel off individual backing material.

Features

Ambu BlueSensor SU ECG Electrode Features

• Highly conductive wet gel.
• Superior quick adhesion.
• Unique offset connector - fitting or tab.
• Occlusive backing material.
• High-quality Ag/AgCl sensor.

Specifications

Ambu BlueSensor SU ECG Electrode Specifications

• Electrode Size (max. L x W or diameter in mm): 49 x 33.
• Skin Contact Size (max. L x W or diameter in mm): 34 x 33.
• Adhesive Area (in mm²): 772.
• Height Excluding Connector/Wire (in mm): 1.2.
• Sensor Material: Silver/silver chloride (Ag/AgCl).
• Gel System: Wet gel.
• Sensor Area (in mm²): 50.
• Gel Area (in mm²): 154.
• AC Impedance - Typical: 650 ╬®.
• DC Offset voltage - Typical: 0.2 mV.
• Defibrillation Overload Recovery - Typical: 9.9 mV.
• Rate of Change of Polarization Potential - Typical: 0.2 mV/s.
• Combined Offset Instability and Internal Noise: <15 ╬╝V.
• Bias Current Tolerance (over 8 hours): <10 mV.
• PVC-Free Electrode: Yes.
• PVC-Free Packaging: Yes.
• Radiolucent: No.
• MR Conditional: No.
• Opened Pouches: 1 month.
• Unopened Pouches: 24 months from date of production.
• Bio-Compatible: Yes.
• Sensor: Silver/silver chloride (Ag/AgCl).
• Sponge: Polyurethane foam (PUR).
• Outer Carrier: Polyethylene foam (PE).
• Outer Adhesive: Acrylate.
• Upper Part: Polyester film (PET).
• Fitting: Polypropylene (PP).
• Connector (stud): Stainless steel.
• Liner: Siliconized polyester film.
• Pouches, Inner Layer: Polyethylene (PE).
• Pouches, Center Layer: Aluminium (AI).
• Pouches, Outer Layer: Polyester (PET).
• Boxes: Cardboard.
• Quantity/Liner: 10.
• Quantity/Pouch: 60, 100.
• Quantity/Box: 600/1200, 1200/2400.
• Minimum Sales: 1200.
• Connectors: C, A, F.
• Single Use Only
