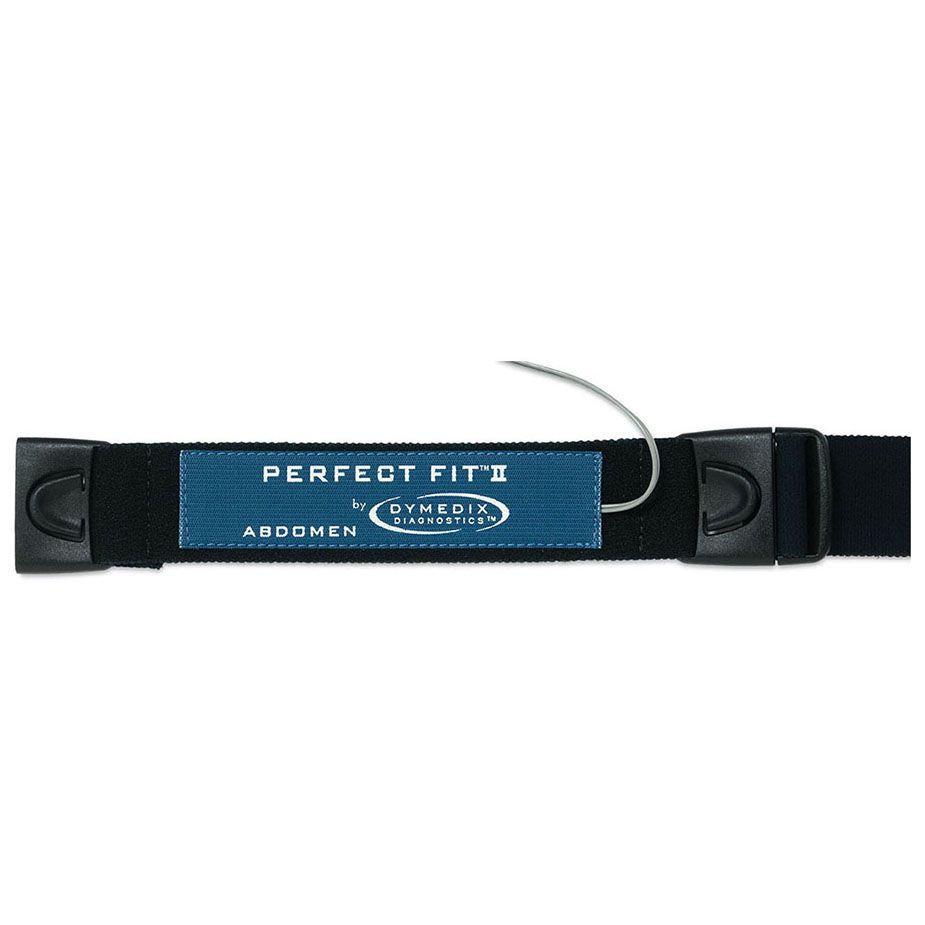

The Dymedix PerfectFit 2 Effort Belt Abdomen Sensor - Adult is used to help aid in the detection of paradoxical respiratory movement. Select the sensor with strap configuration to include a 45" durable, machine washable strap that attaches to the sensor. No woven wire belts, and the low profile buckles ensure patient comfort and allows for a quick and easy set-up.

Warranty: 2 Years.

This U.S.-made Dymedix PerfectFit 2 Effort Belt Abdomen Sensor - Adult has a permanently attached connection cable with a small passive module for signal conditioning and uses polyvinylidene fluoride (PVDF) sensors. PVDF film is sensitive to both temperature change and pressure and is the fastest signal transmitter in the sleep sensor industry (1,000 times faster than a traditional thermistor). This product complies with American Academy of Sleep Medicine (AASM) technical specifications.

*Dymedix products are available to U.S. customers only. For alternate recommendations, please contact one of our sales team members.

Dymedix PerfectFit 2 Effort Belt Abdomen Sensor - Adult Configurations:

Dymedix PerfectFit 2 Effort Belt Abdomen Sensor - Adult Specifications:

• Cable Length: Effort Belt Sensor - 60".
• Typical Polygraph Settings:
  • Sensitivity: 100 - 300 ├Ä┬╝V/mm.
  • Low Frequency Filter: 0.1 Hz.
  • High Frequency Filter: 15 Hz.
• Typical Signal Amplitude:
  • Typical 1 mV peak to peak.
  • Signal amplitudes vary. Response is dependent on variables including sensor position, strap tension, and polygraph characteristics.
• Cable Material: Gray PVC insulation tinsel wire.
• Sensor Technology: PVDF sensor, ABS filtration module.
• Operating Conditions: 40 to 104 ┬░F.
• Storage Temperature: -4 to 140 ┬░F.
• Operating and Storage Humidity: 5 - 95% (non-condensing).
