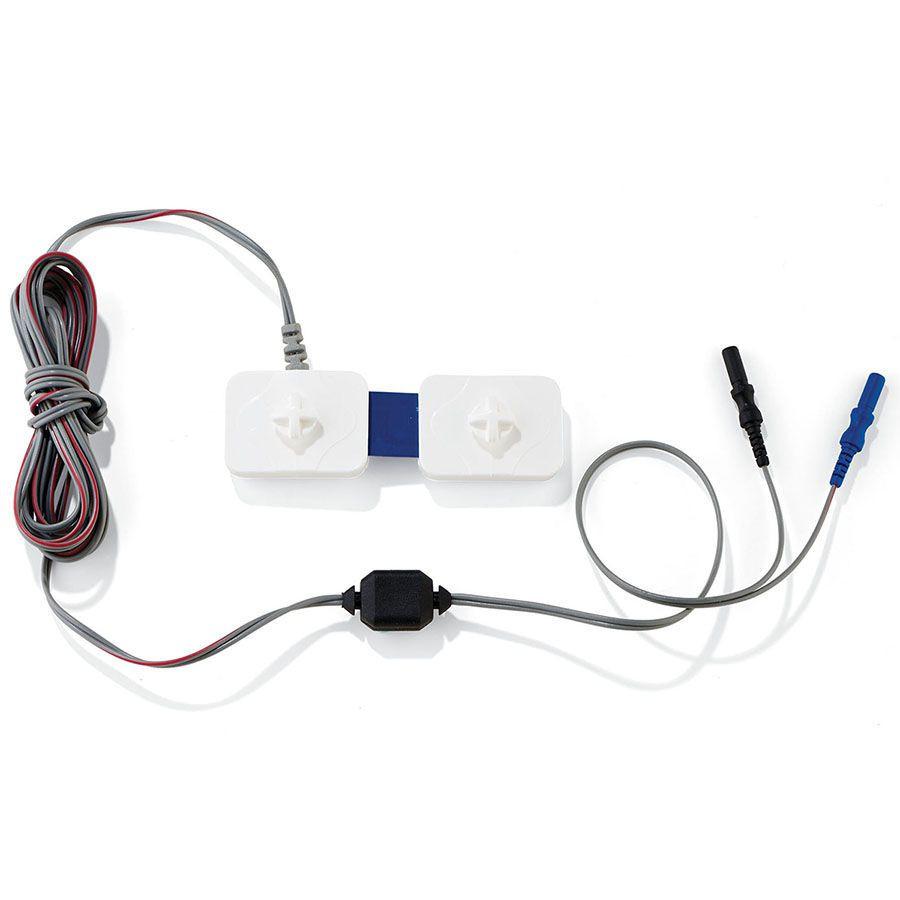

The Dymedix PerfectFit 3D Effort Belt Chest Sensor - Universal (1.5 mm) (#PF-097) provides users with two reusable polyvinylidene fluoride (PVDF) sensor modules that incorporate button connectors that can be connected to a disposable cut-to-size PerfectFit 3D Effort Belt Strap. It provides accurate clean signals and maintains polarity. Quick and easy setup and reusable washable sensor modules make the sensor very user-friendly.

Warranty: 2 Years.

This U.S.-made PerfectFit 3D Effort Belt Chest Sensor - Universal (1.5 mm) is compatible with PSG systems other than Embla, Alice 5, Alice 6, and Grael.

PVDF film is sensitive to both temperature change and pressure and is the fastest signal transmitter in the sleep sensor industry (1,000 times faster than a traditional thermistor). This product complies with American Academy of Sleep Medicine (AASM) technical specifications.

*Dymedix products are available to U.S. customers only. For alternate recommendations, please contact one of our sales team members.

Dymedix PerfectFit 3D Effort Belt Chest Sensor - Universal (1.5 mm) Specifications:

• Physical Size:
  • Effort Belt Sensor: 3.5" (L), 1" (H).
  • Effort Belt Module: 2.25" (L), 0.5" (W), 1.5" (H).
• Shipping Dimensions: 6" (L), 6" (W).
• Cable Length: Effort Belt Sensor -┬á100".
• Weight / Shipping Weight: 1.6 oz.
• Typical Polygraph Settings:
  • Sensitivity: 100 - 300 ├Ä┬╝V/mm.
  • Low Frequency Filter: 0.1 Hz.
  • High Frequency Filter: 15 Hz.
• Typical Signal Amplitude:
  • Typical 1 mV peak to peak.
  • Signal amplitudes vary. Response is dependent on variables including sensor position, strap tension, and polygraph characteristics.
• Cable Material: Gray PVC insulation tinsel wire.
• Sensor Technology: PVDF sensor, ABS filtration module.
• Operating Conditions: 40 to 104 ┬░F.
• Storage Temperature: -4 to 140 ┬░F.
• Operating and Storage Humidity: 5 - 95% (non-condensing).
