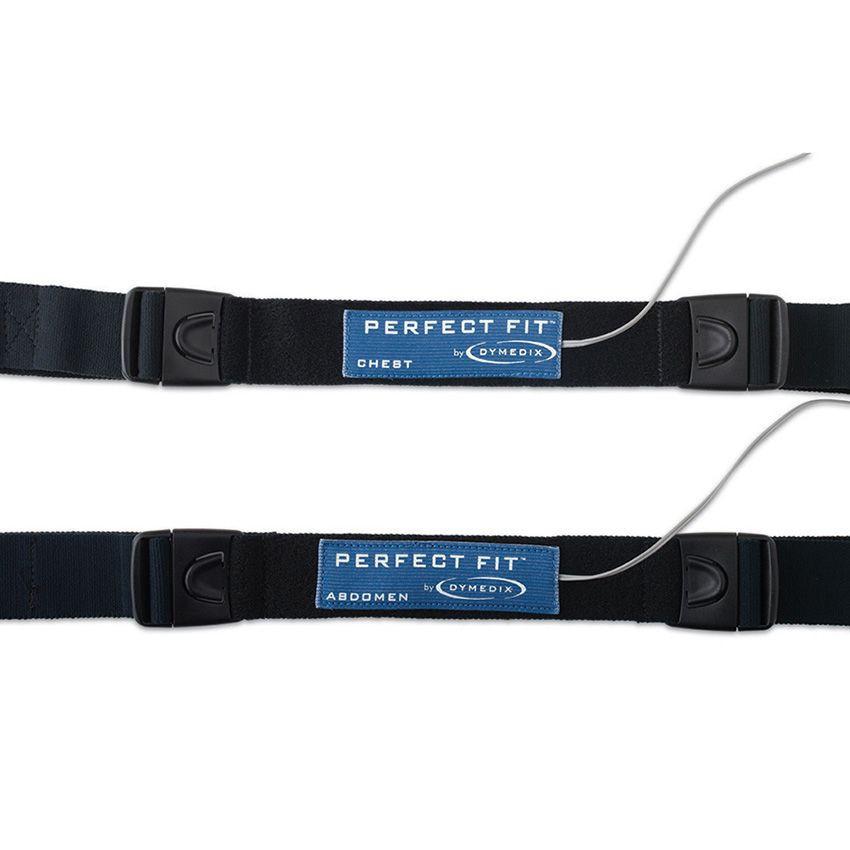

The Dymedix PerfectFit Effort Belt Chest and Abdomen Sensor Kit - Adult (#PF-005) is used to help aid in the detection of paradoxical respiratory movement. This kit does not include the PerfectFit Effort Belt Strap. Both the PerfectFit Chest and Abdomen Belts can be combined with a single active module to deliver Chest, Abdomen, and Sum channels. No woven wire belts, and the low profile buckles ensure patient comfort and allows for a quick and easy set-up.

Note: Dymedix products are available to U.S. customers only. For alternate recommendations, please contact one of our sales team members.

Warranty: 2 Years - Free from Defects in Materials and Workmanship.

This U.S.-made sensor kit can be attached to the Dymedix PerfectFit SUM Module with Cable - Adult and uses polyvinylidene fluoride (PVDF) sensors. PVDF film is sensitive to both temperature change and pressure and is the fastest signal transmitter in the sleep sensor industry (1,000 times faster than a traditional thermistor). This product complies with American Academy of Sleep Medicine (AASM) technical specifications.

Specifications

Dymedix PerfectFit Effort Belt Chest and Abdomen Sensor Kit - Adult Specifications

• Physical Size: Effort Belt Sensor: 10" (L) x 1.5" (H).
• Shipping Dimensions:┬á9" (L) x 6" (W).
• Cable Length: Effort Belt Sensor - 60".
• Weight / Shipping Weight:┬á0.29 lbs (4.6 oz).
• Typical Polygraph Settings:
  • Sensitivity: 100 - 300 ├Ä┬╝V/mm.
  • Low Frequency Filter: 0.1 Hz.
  • High Frequency Filter: 15 Hz.
• Typical Signal Amplitude:
  • Typical 1 mV peak to peak.
  • Signal amplitudes vary. Response is dependent on variables including sensor position, strap tension, and polygraph characteristics.
• Cable Material: Gray PVC insulation tinsel wire.
• Sensor Technology: PVDF sensor, ABS filtration module.
• Operating Conditions: 40 to 104 ┬░F.
• Storage Temperature: -4 to 140 ┬░F.
• Operating and Storage Humidity: 5 - 95% (non-condensing).
