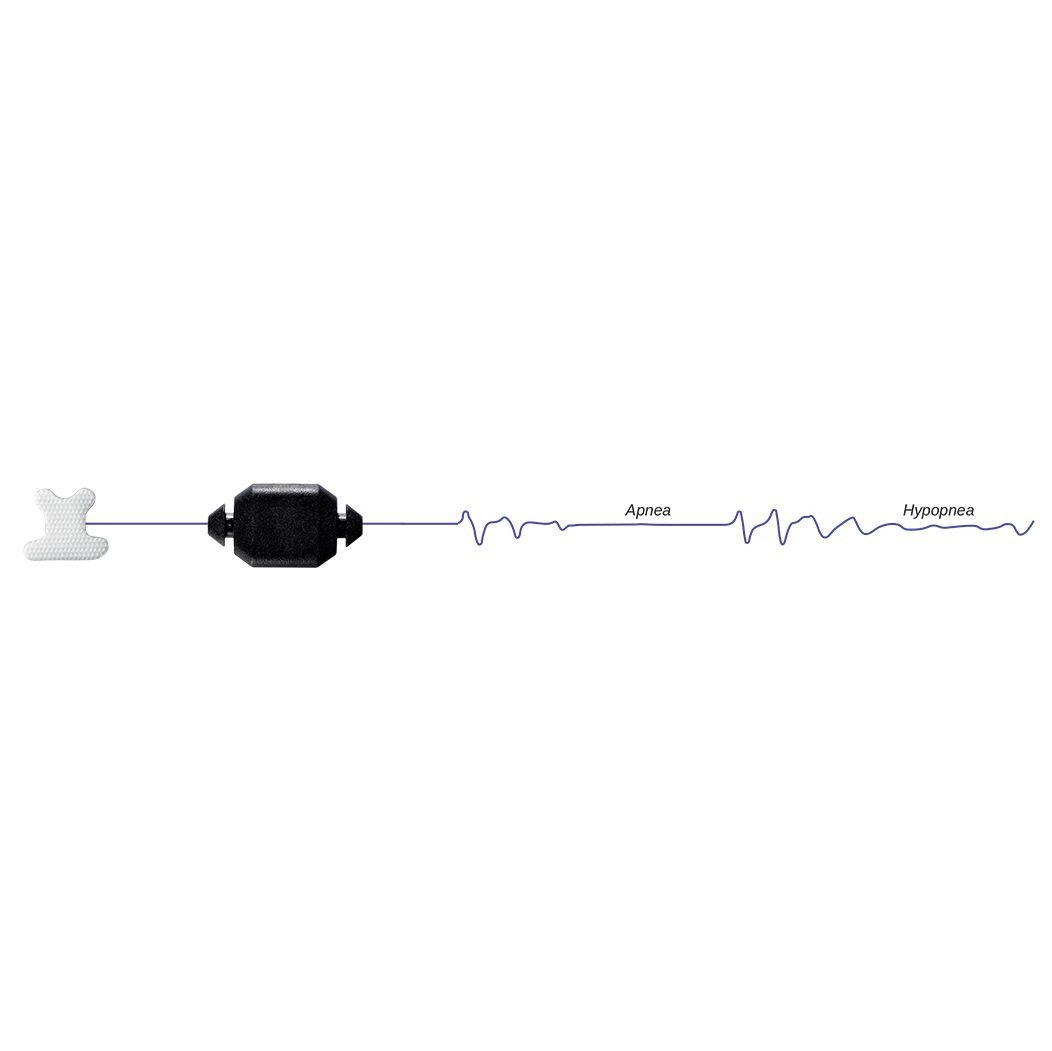

The Dymedix TriplePlay FM1 Airflow Filtration Module - Universal (1.5 mm) provides one output with smooth sinusoidal waveforms focusing on identification of apnea and hypopnea events. This airflow filtration module (# FM-100) is compatible with PSG systems other than Embla, Alice 5, Alice 6, and Grael.
Warranty: 2 Years.
The FM1 Airflow Filtration Module - Universal is intended for use with Dymedix TriplePlay disposable or reusable polyvinylidene fluoride (PVDF) airflow sensors. PVDF film is sensitive to both temperature change and pressure and is the fastest signal transmitter in the sleep sensor industry (1,000 times faster than a traditional thermistor). This product is made in the U.S. and complies with American Academy of Sleep Medicine (AASM) technical specifications.
*Dymedix products are available to U.S. customers only. For alternate recommendations, please contact one of our sales team members.
Dymedix TriplePlay FM1 Airflow Filtration Model - Universal Specifications:
Physical Size: 0.75 (L), 0.25" (W), 0.5" (H).
Shipping Dimensions: 6" (L), 6" (W).
Cable Length: 60".
Weight / Shipping Weight: 1.2 oz.
Typical Polygraph Settings:
Sensitivity: 100 - 300 μV/mm.
Low Frequency Filter: 0.1 Hz.
High Frequency Filter: 15 Hz.
Typical Signal Amplitude:
Typical 1 mV peak to peak.
Signal amplitudes vary. Response is dependent on variables including sensor position, strap tension, and polygraph characteristics.
