Dymedix TriplePlay FM2 Airflow Filtration Module - Alice 6

0 out of 5 - (Total 0 ratings)

$190.00

Quantity

Lets Spread this

Description
Review ( 0 )

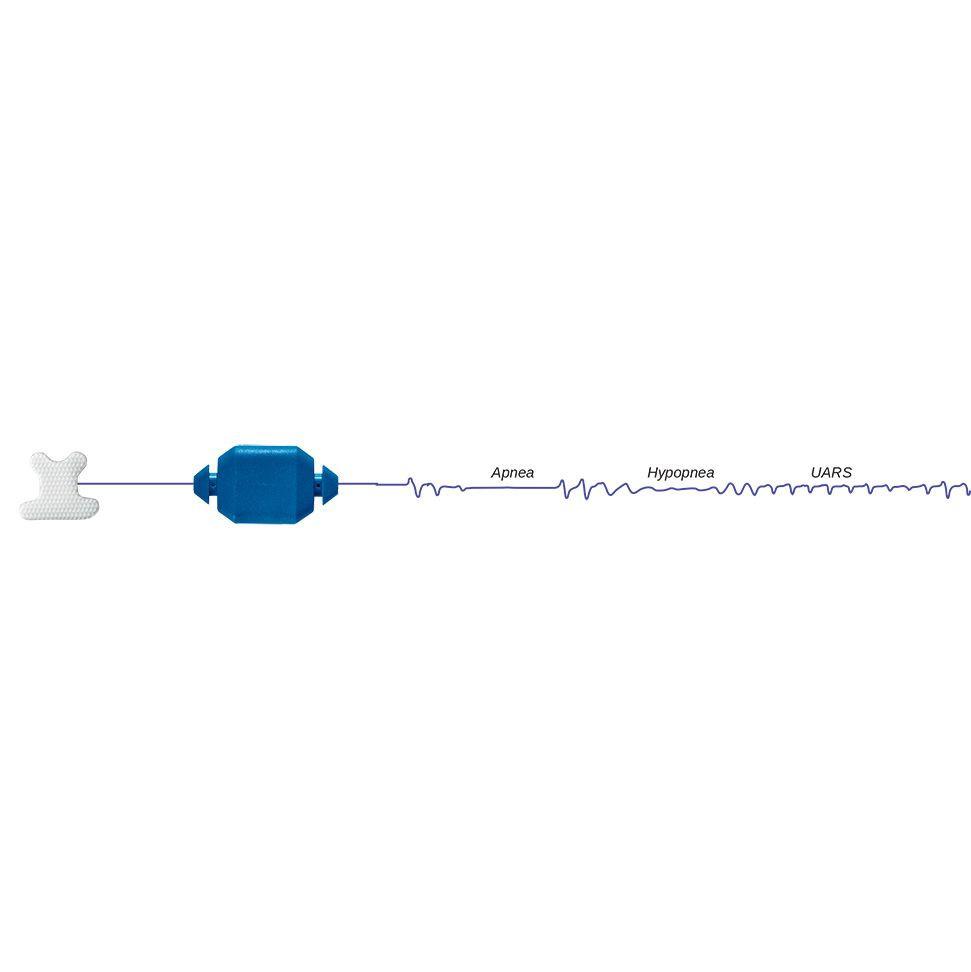

The Dymedix TriplePlay FM2 Airflow Filtration Module - Alice 6┬á(#FM-203) provides one output and uses a more expanded frequency filtering approach by allowing some of the more faster frequencies provided by PVDF technology into the waveform. In addition to Apnea and Hypopnea events, more subtle changes in the airflow signal often associated with flow limitation and UARS are easily identified. This airflow filtration module is compatible with Alice 6 PSG systems.

Warranty: 2 Years.

The U.S. made FM2 Airflow Filtration Module - Alice 6 is intended for use with Dymedix TriplePlay disposable or reusable polyvinylidene fluoride (PVDF) airflow sensors. PVDF film is sensitive to both temperature change and pressure and is the fastest signal transmitter in the sleep sensor industry (1,000 times faster than a traditional thermistor). This product complies with American Academy of Sleep Medicine (AASM) technical specifications.

*Dymedix products are available to U.S. customers only. For alternate recommendations, please contact one of our sales team members.

Dymedix TriplePlay FM2 Airflow Filtration Module - Alice 6 Specifications:

Physical Size: 0.75" (L), 0.25" (W), 0.5" (H).
Shipping Dimensions: 6" (L), 6" (W).
Cable Length: 60".
Weight / Shipping Weight:┬á2 oz.
Typical Polygraph Settings:
- Sensitivity: 100 - 300 ├Ä┬╝V/mm.
- Low Frequency Filter: 0.1 Hz.
- High Frequency Filter: 15 Hz.
Typical Signal Amplitude:
- Typical 1 mV peak to peak.
- Signal amplitudes vary. Response is dependent on variables including sensor position, strap tension, and polygraph characteristics.
Cable Material: Gray PVC insulation tinsel wire.
Sensor Technology: PVDF sensor, ABS filtration module.
Operating Conditions: 40 to 104 ┬░F.
Storage Temperature: -4 to 140 ┬░F.
Operating and Storage Humidity: 5 - 95% (non-condensing).
