Dymedix TriplePlay FM4 Airflow Filtration Module - Grael

0 out of 5 - (Total 0 ratings)

$190.00

Quantity

Lets Spread this

Description
Review ( 0 )

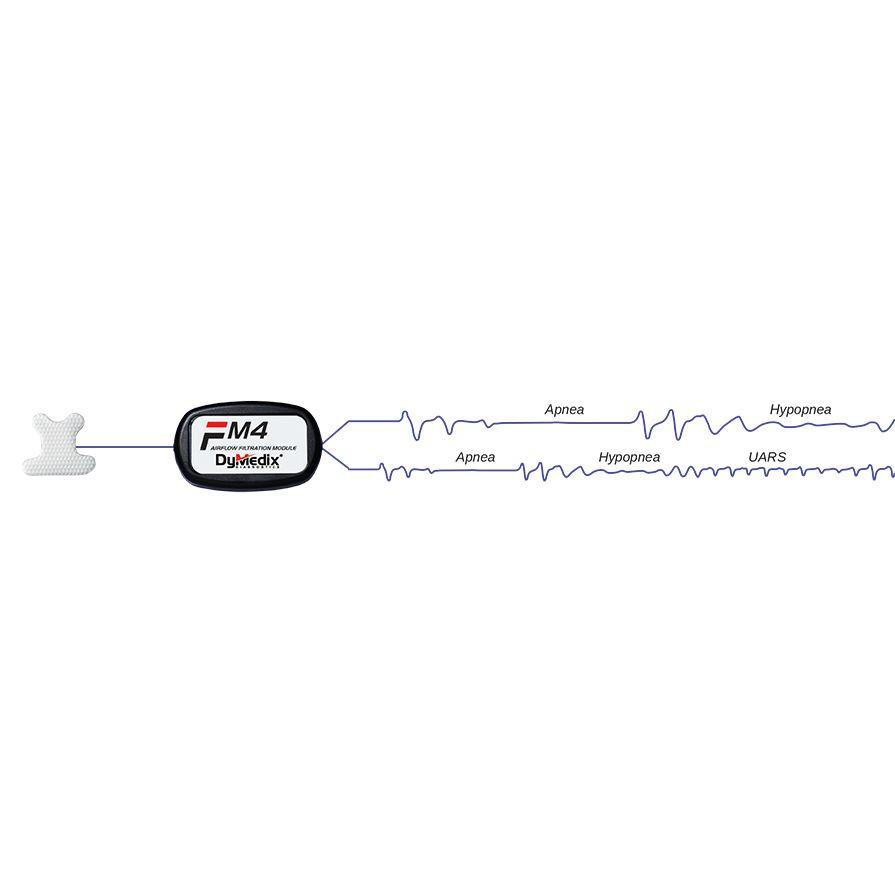

The Dymedix TriplePlay FM4 Airflow Filtration Module - Grael (#FM-404)┬áprovides two airflow outputs. It provides the smooth FM1 waveform in one output, and the faster FM2 waveform in the other output. It is designed for users who prefer having two separate channels of airflow waveforms, one for identifying apnea events, and another for identifying hypopnea events.

Warranty: 2 Years.

With two separate channels, the FM4 Airflow Filtration Module - Grael is an ideal airflow filtration module for a sleep lab conducting more sophisticated studies that may use two channels at once. This U.S. made airflow filtration module is compatible with Grael PSG systems and is intended for use with Dymedix TriplePlay disposable or reusable polyvinylidene fluoride (PVDF) airflow sensors. PVDF film is sensitive to both temperature change and pressure and is the fastest signal transmitter in the sleep sensor industry (1,000 times faster than a traditional thermistor). This product complies with American Academy of Sleep Medicine (AASM) technical specifications.

*Dymedix products are available to U.S. customers only. For alternate recommendations, please contact one of our sales team members.

Dymedix TriplePlay FM4 Airflow Filtration Module - Grael Specifications:

Physical Size: 2.25 (L), 0.5" (W), 1.5" (H).
Shipping Dimensions: 6" (L), 6" (W).
Cable Length: 60".
Weight / Shipping Weight: 2 oz.
Typical Polygraph Settings:
- Sensitivity: 100 - 300 ├Ä┬╝V/mm.
- Low Frequency Filter: 0.1 Hz.
- High Frequency Filter: 15 Hz.
Typical Signal Amplitude:
- Typical 1 mV peak to peak.
- Signal amplitudes vary. Response is dependent on variables including sensor position, strap tension, and polygraph characteristics.

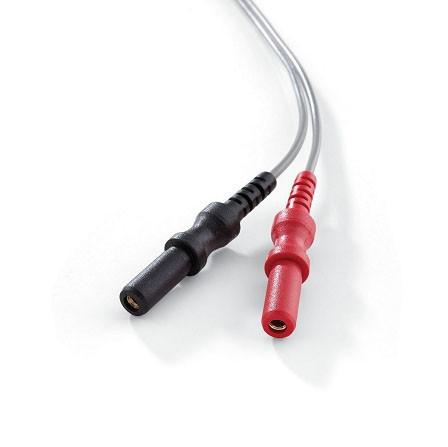

Cable Material: Gray PVC insulation tinsel wire.
Sensor Technology: PVDF sensor, ABS filtration module.
Operating Conditions: 40 - 104┬░F.
Storage Temperature: -4 - 140┬░F.
Operating and Storage Humidity: 5 - 95% (non-condensing).
