Dymedix TriplePlay FM5 Airflow Filtration Module - Grael

0 out of 5 - (Total 0 ratings)

$200.00

Quantity

Lets Spread this

Description
Review ( 0 )

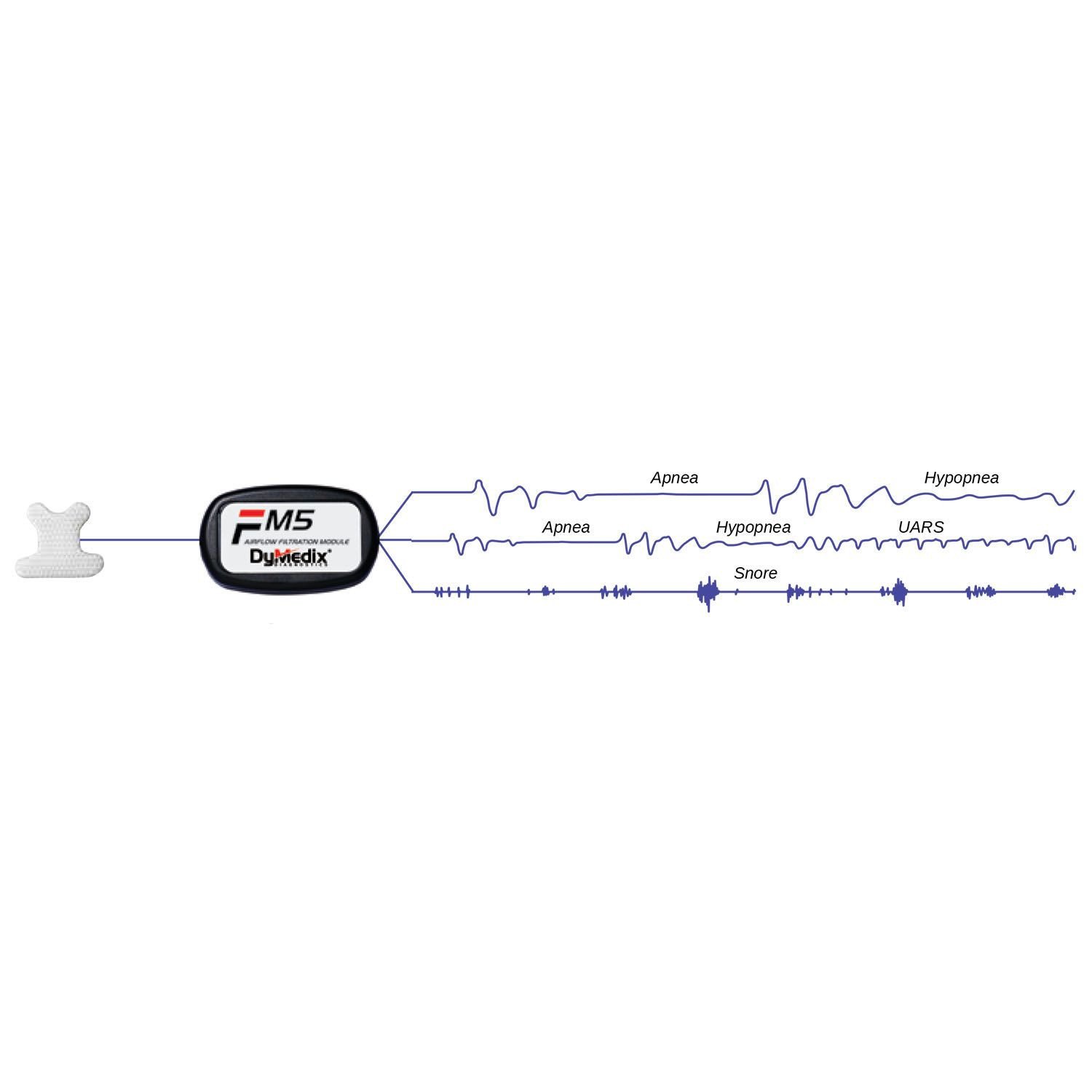

The Dymedix TriplePlay FM5 Airflow Filtration Module - Grael provides the same functionality as the FM4, but with a third snore channel. The FM5 (#FM-504) features two airflow outputs - one for apnea and the other for hypopnea or upper airway resistance syndrome (UARS). Additionally, it has one snore output channel.

Warranty: 2 Years.

With three channels, the FM5 Airflow Filtration Module - Grael is an ideal airflow filtration module for a sleep lab conducting more sophisticated studies that may use all three channels at once, or for a lab looking for a cost-effective "three-in-one" product. This U.S.-made universal airflow filtration module is compatible with Grael PSG systems and is intended for use with Dymedix TriplePlay disposable or reusable polyvinylidene fluoride (PVDF) airflow sensors. PVDF film is sensitive to both temperature change and pressure and is the fastest signal transmitter in the sleep sensor industry (1,000 times faster than a traditional thermistor). This product complies with American Academy of Sleep Medicine (AASM) technical specifications.

*Dymedix products are available to U.S. customers only. For alternate recommendations, please contact one of our sales team members.

Dymedix TriplePlay FM5 Airflow Filtration Module - Grael Specifications:

Physical Size: 2.25 (L), 0.5" (W), 1.5" (H).
Shipping Dimensions: 6" (L), 6" (W).
Cable Length: 60".
Weight / Shipping Weight: 2 oz.
Typical Polygraph Settings:
- Sensitivity: 100 - 300 ├Ä┬╝V/mm.
- Low Frequency Filter: 0.1 Hz.
- High Frequency Filter: 15 Hz.
Typical Signal Amplitude:
- Typical 1 mV peak to peak.
- Signal amplitudes vary. Response is dependent on variables including sensor position, strap tension, and polygraph characteristics.

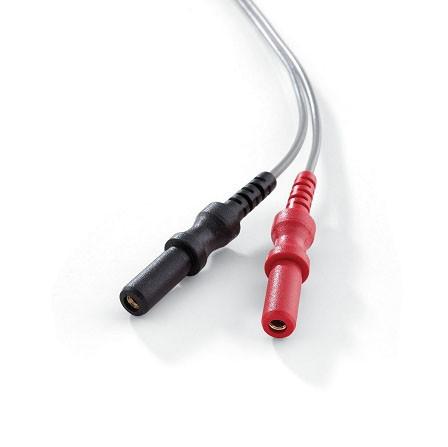

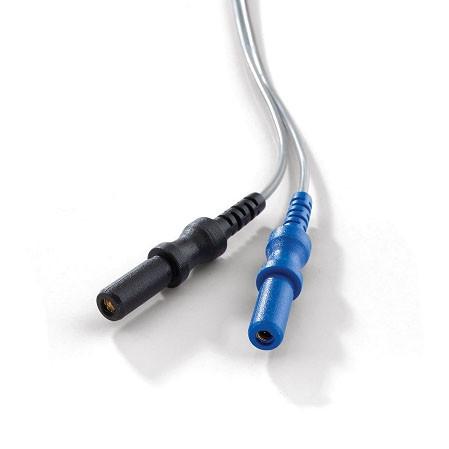

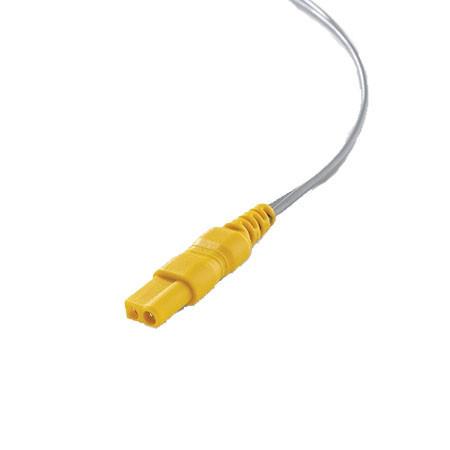

Cable Material: Gray PVC insulation tinsel wire.
Sensor Technology: PVDF sensor, ABS filtration module.
Operating Conditions: 40 - 104┬░F.
Storage Temperature: -4 - 140┬░F.
Operating and Storage Humidity: 5 - 95% (non-condensing).
