The Edan SE-1200 Express Basic 12-Channel ECG (#SE-1200EB) includes:

• ECG Cable [(4 mm, banana connector, AHA) (#01.57.107048)].
• (100) Bio ProTech Resting Tab Electrodes (#PT-2334).
• (10) Unomedical 10-Lead Universal Clips (#0334).
• Recording Paper [(Z-fold, 210 mm * 295 mm * 100 P) (#SE-12P)].
• Power Cord [(USA standard) (#01.13.036106)].
• Rechargeable Lithium Battery [(2200 mAH) (#21.21.064149)].
• Fixed Bar for Battery [(necessary accessory for 2200 mAH battery) (#11.51.32501)].
• (2) Fuses [(1 A) (#11.21.64073)].
• User Manual.
• Quick Reference Card.
• User Guide for Interpretation.

Warranty: Factory 2 Years - Free from Defects in Materials and Workmanship.

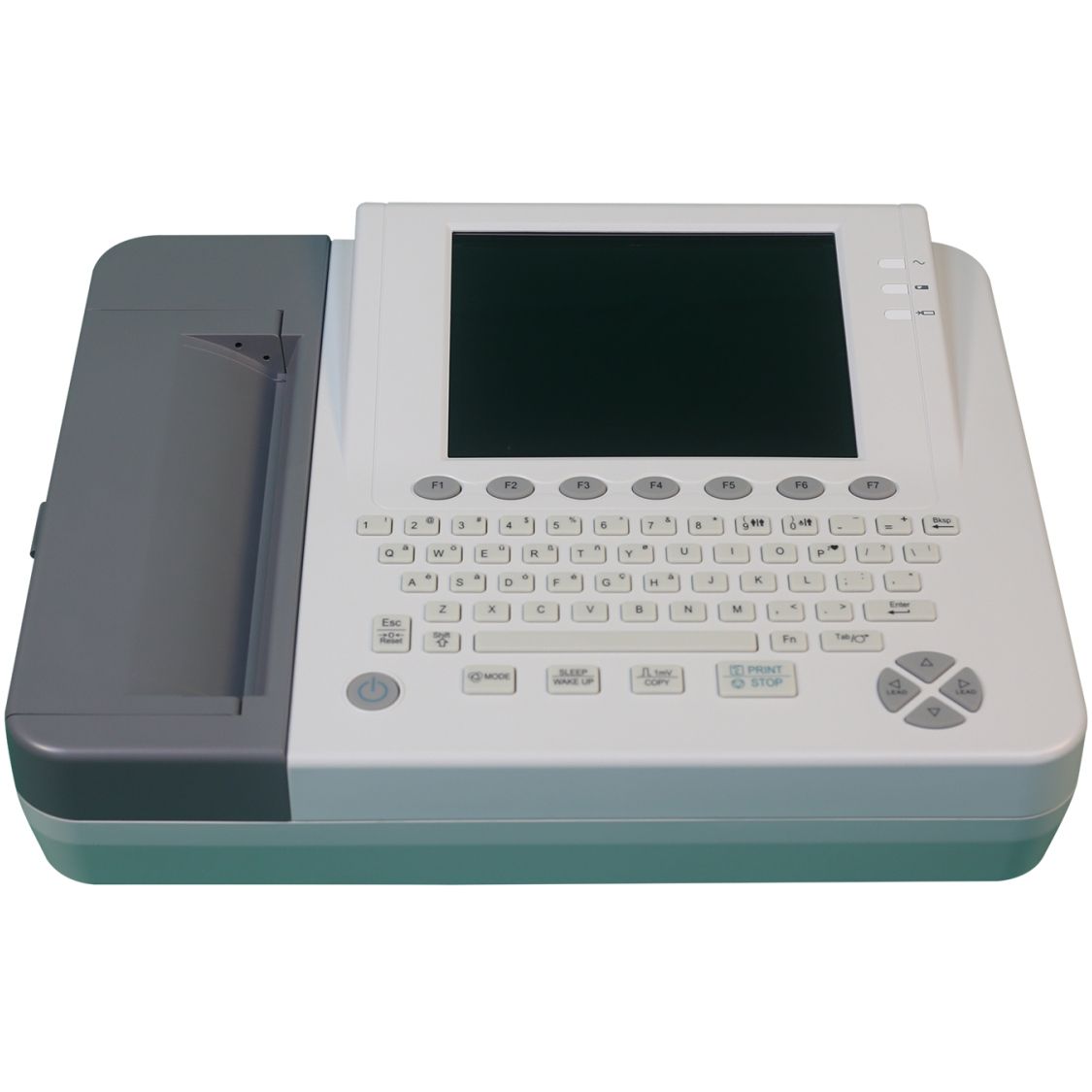

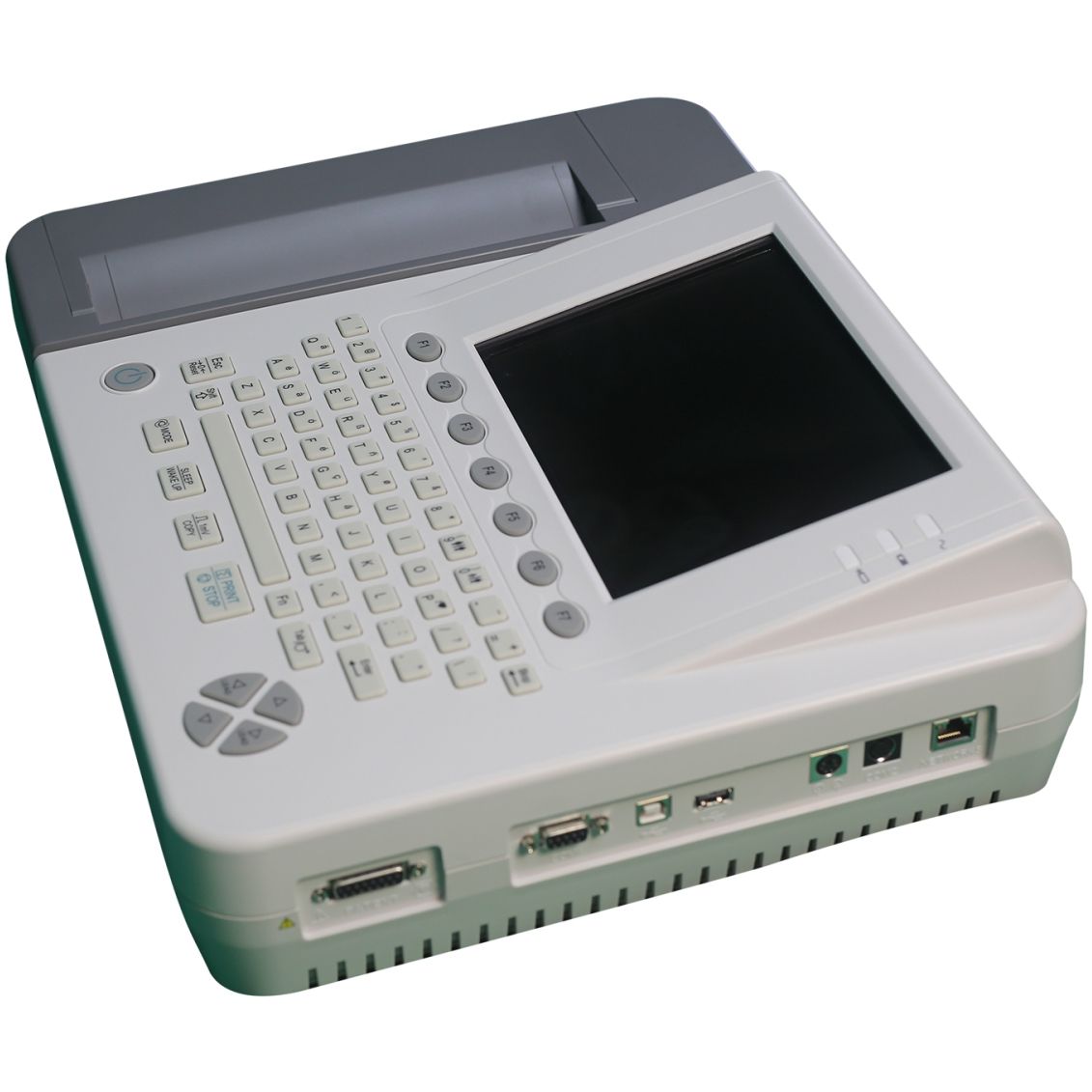

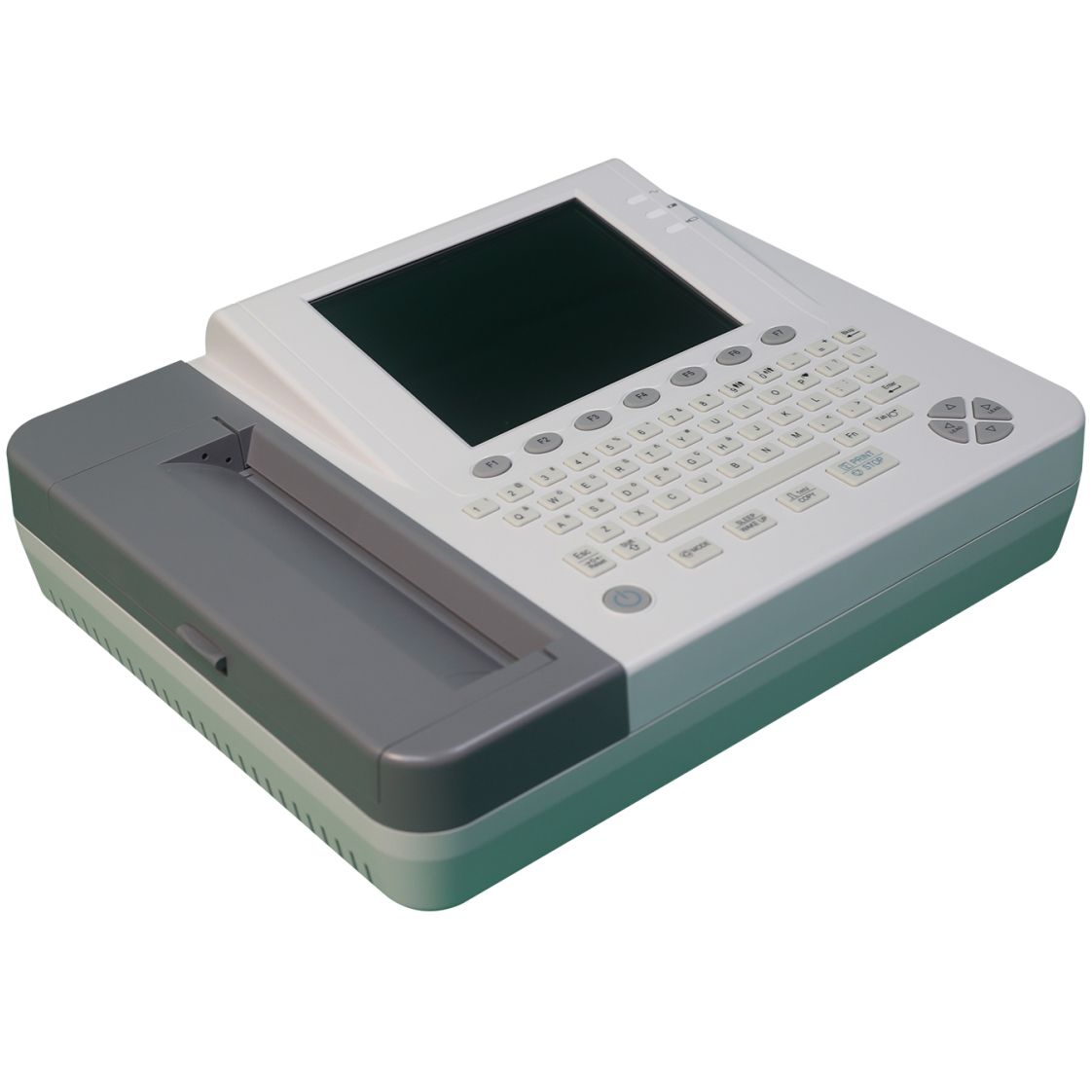

The SE-1200 Express Basic features excellent cost performance with its built-in high-resolution thermal printer. You can record 12 ECG traces on A4 size and US Letter-size paper.

Features

Edan SE-1200 Express Basic 12-Channel ECG Features

• User-Friendly Design:
  • 8.4" LCD screen for optimal viewing.
  • Alphanumeric keyboard.
  • Built-in rechargeable Lithium battery, AC/DC supply.
• Streamlined Workflow:
  • One touch operation with age and gender shortcuts.
  • Support barcode scanner to simplify workflow (optional).
• Accurate Clinical Performances:
  • Enhanced weak signal detection with the most advanced A/D converter technology.
  • Anti-noise technology with comprehensive filters and the high CMRR over 115 dB.
  • 120s real-time ECG waveforms freezing and review to assist your diagnosis.
  • Automatic measurements and interpretation tested by CSE/AHA/MIT database and advanced SEMIP algorithm.
  • Extended printing once arrhythmia is detected to further rhythm analysis.
  • Integrated advanced ECG analysis (Vector ECG).
• Flexible Printing Solutions:
  • Built-in high resolution thermal recorder to print on normal thermal paper and A4 size fax paper.
  • External USB printer support.
• Data Management:
  • 100 ECGs internal memory which can be enlarged by USB flash disk.
  • Smart ECG Viewer software for data management on PC (optional).
• Extensive Communications:
  • Standard ECG Formats: PDF, SCP, FDA-XML, and DICOM data export.
  • Bi-directional data communication with SE-1515 Data Management System.
  • DATA transmitting to PC via LAN/WIFI (optional).

Specifications

Edan SE-1200 Express Basic 12-Channel ECG Specifications

• Input Circuit: Defibrillation protection.
• Standard 12 leads.
• A/D Resolution: 24 bits.
• Time Constant: ÔÇ░┬Ñ to 3.2 s.
• Frequency Response: 0.05 ~ 150 Hz (-3 dB).
• Sensitivity: 2.5, 5, 10, 20, 10/5, AGC (mm/mV).
• Input Impedance: ÔÇ░┬Ñ to 50 M├Ä┬® (10 Hz).
• Input Circuit Current: ÔÇ░┬ñ 0.01 ┬ÁA.
• Input Voltage Range: < ┬▒ 5 mVpp.
• Calibration Voltage: 1 mV ┬▒ 2%.
• DC Offset Voltage: ┬▒ 600 mV.
• Noise: ÔÇ░┬ñ 12.5 ┬ÁVp-p.
• Filter:
  • AC Filter: On/Off.
  • DFT Filter: 0.05 Hz / 0.15 Hz / 0.25 Hz / 0.32 Hz / 0.5 Hz / 0.67 Hz.
  • EMG Filter: 25 Hz / 35 Hz / 45 Hz / OFF.
  • LOWPASS Filter: 150 Hz / 100 Hz / 75 Hz.
• CMRR: ÔÇ░┬Ñ 115 dB.
• Working Mode: Auto/Manual/Rhythm/R-R/Off.
• Rhythm: Single channel or 3 channels (selectable).
• Power Supply: 110 - 240 V, 50/60 Hz (AC).
• Battery: Built-in rechargeable Li-ion battery (for 300 copies ECG printing).
• Record Paper: Roll and Z-fold.
• Record Width: 216 mm, 210 mm.
• Record Speed: 5 mm/s, 6.25 mm/s, 10 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s (┬▒ 3%).
• Dimensions: 16.5" x 13" x 4.1" (420 mm x 300 mm x 105 mm).
• Weight: 11 lbs (5 kg).
• Display: 800 x 600 dots multicolor LCD screen.
• Communication Interface: Ethernet/RS232/USB.

Literature

Edan SE-1200 Express Basic 12-Channel ECG Literature

Edan SE-1200 Express Basic/SE-1200 Express 12-Channel ECG Brochure

Edan SE-1200 Series Electrocardiograph User Manual
