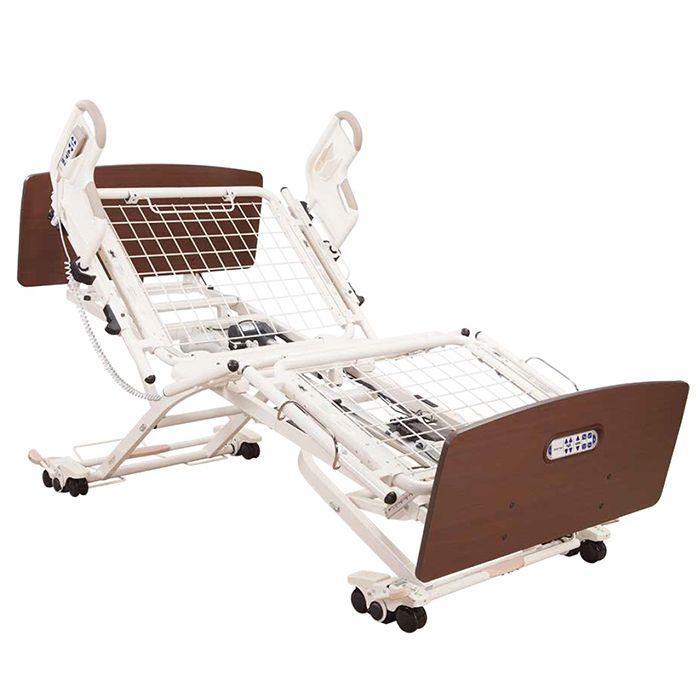

The Joerns UltraCare XT Bed is a unique long-term care bed that comes standard with a soft tone frame color, QuickCare, AdvanceCare positioning and a grid deck mattress.

Note: Joerns Bed Panels are commonly purchased at the same time as a Joerns Bed to ensure correct measurements. Contact MFI Medical to personalize your order.

Warranties:

• 90 Days - Normal use parts (including batteries).
• 5 Years - Mechanical and electrical components.
• 15 Years - Steel structural components.
• Lifetime - Welds.

The Joerns UltraCare XT Bed is very versatile, allowing caregivers more comfort options for patients. The bed comes with QuickCare feature, which gives the bed flexibility to raise and lower the bed in under 30 seconds. This way, caregivers can assist patients in getting up or sitting down on the bed. The AdvanceCare feature is also included with the bed, and is a gravity-assist chair position for safer, more comfortable positioning.

The UltraLock feature is available as an add-on, which keeps the bed safe during movement, and can be applied to either the foot end of the head end. There are also ergonomic controls, such as raised buttons, backlighting, and a staff control.

Features

Joerns UltraCare XT Bed Features

• Includes UltraLock and AdvanceCare as added safety features.
• QuickCare raises and lowers the bed in 30 seconds.
• Can be customized for short-term, long-term, or bariatric care.
• Ergonomic controls come standard - raised buttons, staff controls, and backlighting.

Specifications

Joerns UltraCare XT Bed Specifications

• Dimensions - 76": 82.0" (L) x 35.0" (W) x 7.0" (H).┬á
• Dimensions - 80": 85.5" (L) x 35.0" (W) x 7.0" (H).
• Base Weight: 220 lb (99.8 kg).
• Equipped with single UltraLock: 247 lb (112 kg).
• Equipped with dual UltraLocks: 274 lb (112 kg).
• Maximum Back Angle: 65┬░ to horizontal
• Maximum Knee Angle: 35┬░ to horizontal
• Maximum Knee To Leg Angle: 45┬░
• Minimum Height Mattress Support Surface
  • Base Bed: 7".
  • Equipped with UltraLock(s): 7.25".
• Maximum Height Mattress Support Surface
  • Base Bed: 30".
  • Equipped with UltraLock(s): 30.6".
• Safe Working Load: 500 lb (227 kg).
• Maximum Patient Weight: 450 lb (204 kg).

Electrical Specifications

• Mains Voltage: 110 - 240 VAC.
• Frequency: 60 Hz.
• Input Current: 4.0 Amps.
• Control Box Output Voltage: 24V DC.
• Electrical Protection: Class I or II, Type B.
• Duty Cycle: 10% (2 min on / 18 min off).
• Circuit Protection: Auto reset current sensor.

Accessories

Joerns UltraCare XT Bed Accessories

These items are commonly purchased with the Joerns UltraCare XT

• SafeLight.
• 4" and 8" Length Extender.
• Foam Bolster for Length Extension.
• Bed Panel Bracket.
• Deluxe Assist Handle.
• Pendant Holder.
• Mobility Status Indicator.

Configurations

Joerns UltraCare XT Bed Configurations

• #UCXTBED: Standard model.
• #UCXTBED-ELEC: With Class 1 Electronics (Hospital Grade).
• #UCXTBED-ULTRA-FOOT:┬áWith UltraLock at Foot End.
• #UCXTBED-ULTRA-HEADFOOT:┬áWith UltraLock at Head and Foot.

Media and Literature

Joerns UltraCare XT Bed Media and Literature

Joerns UltraCare XT Bed Accessories Brochure

Joerns UltraCare XT Bed Brochure

Joerns UltraCare XT Bed Spec Sheet

Joerns UltraCare XT Bed User-Service Manual
