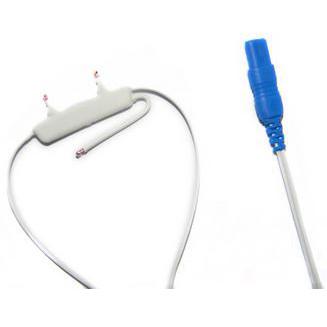

The SleepSense Alice 6 Reusable Thermistor Flow Sensor (#1466) is designed for use with the Alice 6 Diagnostic Sleep System.

Warranty: 6 Months - Free of Defects in Materials and Quality Workmanship.

The Thermistor Flow Sensor is comprised of three heat sensitive elements. It is placed under the patient's nostrils and produces a signal that is directly proportional to the temperature changes of air inhaled and exhaled during respiration. The sensor generates a small analog electrical voltage that provides a clear, reliable indication of respiration airflow. It should be connected to the Alice 6 system's thermal-flow input.

Compatibility: The SleepSense Alice 6 Reusable Thermistor Flow Sensor is completely compatible with the Philips Respironics Alice 6 unit.

NOTE: SleepSense items are for professional use only, and are for sale by or on the order of a physician only.

Features

SleepSense Alice 6 Reusable Thermistor Flow Sensor Features

• Provides a strong and accurate respiration airflow signal.
• Easy to use and clean.
• Powered by the SleepSense interface box or your PSG System.

Specifications

SleepSense Alice 6 Reusable Thermistor Flow Sensor Specifications

• Technology: Small rounded TPE center with three prongs.
• Recommended Filter Settings: (or as recommended in the system's instructions)
  • High Pass: 0.1 Hz.
  • Low Pass: 70 Hz.
• Signal Output:
  • With Interface: Approximately 1 mV.
  • Without Interface: NTC ╬® change.
• Operating Conditions: 40 to 104 ┬░F (5 to 40 ┬░C).
• Storage Temperature: -4 to 140 ┬░F (-20 to 60 ┬░C).
• Operating/Storage Humidity: 5 to 95% (non-condensing).

Literature

SleepSense Alice 6 Reusable Thermistor Flow Sensor Literature

SleepSense Thermal Flow Sensors User Manual
