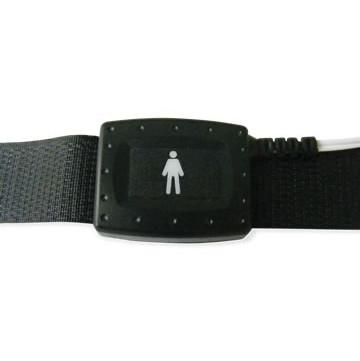

The SleepSense Body Position Sensor Kit (# 1571-Kit) includes: the Body Position Sensor / Key Connector (# 1571) and the body position band (# 1550). This sensor is designed with a key connector, suitable for most systems that accept key connectors. Using solid-state accelerometers, this SleepSense Body Position Sensor provides a signal that is directly proportional to the patient's sleeping posture (supine, prone, left, right, or sitting).

The sensor may be connected to suitable high-level channels on the recorder. SleepSense Body Position Sensors are designed with an improved body attachment ensuring alignment of the sensor and body axis. Additionally, this sensor is designed with a key connector, making it suitable for most systems that accept key connectors.

NOTE: SleepSense items are for professional use only, and are for sale by or on the order of a physician only.

Specifications

SleepSense Body Position Sensor Kit Specifications

• Power: Battery, non-replaceable.
• Operating Conditions: 40 to 104 ┬░F.
• Storage Temperature: -4 to 140 ┬░F.
• Operating and Storage Humidity: 5 to 95% (non-condensing).

SleepSense Body Position Sensor Kit Literature

SleepSense Body Position Sensors User Manual
