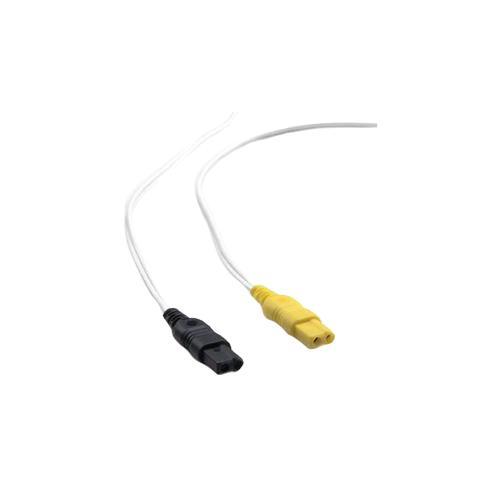

The SleepSense Inductive Interface Cable - Chest - Key Connector connects any SleepSense inductive belt to nearly any PSG system. Designed as plug-and-play replacements for Piezo Effort Sensors, SleepSense Inductive solutions are compliant with the new regulatory sleep center guidelines.

Warranty: 1 Year - Free of Defects in Materials and Quality Workmanship.

The SleepSense Interface Cable is designed to work with Embla systems. The cable employs keyhole connectors that plug directly into your Embla Headbox, is powered by the system, and connects to any SleepSense inductive band.

The output of the inductive bands is exactly proportional to the cross section area of the band's closed loop around the body, changing as the patient breathes. The Inductive Interface Cable measures these inductance changes to generate a reliable replication of respiration waveforms.

Note: SleepSense items are for professional use only, and are for sale by or on the order of a physician only.

Specifications

SleepSense Inductive Interface Cable - Chest - Key Connector Specifications

• Operating Conditions: 40 to 104 ┬░F.
• Storage Temperature: -4 to 140 ┬░F.
• Operating and Storage Humidity: 5 to 95% (non-condensing).

Lengths

SleepSense Inductive Interface Cable - Abdomen - Key Connector Lengths

• 9141: 1.5 Foot Cable.
• 9151: 8.0 Foot Cable.

Compatibility

SleepSense Inductive Interface Cable - Chest - Key Connector Compatibilty

The SleepSense Inductive Interface Cable - Chest - Key Connector is compatible with the following products from these medical brands:

Literature

SleepSense Inductive Interface Cable - Chest - Key Connector Literature
