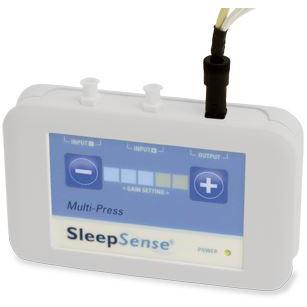

The SleepSense Multi-Press Pressure Transducer (# 14840-Kit) provides AC flow and adjustable snore sensitivities through digital control over five levels.

Warranty: 1 Year - Free of Defects in Materials and Quality Workmanship.

This sensor will automatically turn itself on when breathing is detected and automatically turn off when breathing is not detected for five minutes. This product has calibrated DC pressure output as well as AC flow and snore channels for optimal use in any sleep lab. When used as a DC transducer, replacing the batteries will automatically set the module back to zero.

The Multi-Press is designed to monitor respiration through air pressure sensing in non "life supporting" applications, such as sleep studies. Output from the sensor enables pressure values to be recorded onto polygraph, EEG or similar physiological recorders. The sensor is powered by two AA batteries, which are included.

NOTE: SleepSense items are for professional use only, and are for sale by or on the order of a physician only.

Specifications

SleepSense Multi-Press Pressure Transducer Specifications

• The Multi-Press has Three Output Signals:
  • A DC air pressure output providing a reading of the true different air pressure between the + and - pressure inputs.
  • An AC coupled pressure flow level output.
  • A snore low level signal output.
• System Connector: Depending on output cable type.
• DC Signal Output Calibration: 50 mV/ 1 cm H2O.
• Pressure Range: -3 to 40 cm H2O, -0.15 V to 2 V DC output.
• Power: Two AA batteries good for about 1000 hours.
• Overall Accuracy: +/- 0.7 cm H2O over 20 to 40 ┬░C range.
• AC Output Sensitivity: About 1 mV for normal respiration at midrange sensitivity.
• SNORE Output Sensitivity: About 1 mV for moderate respiration at midrange sensitivity.
• Storage Temperature: -4 to 140 ┬░F.

Literature

SleepSense Multi-Press Pressure Transducer Literature

SleepSense Multi-Press (AC/DC Pressure Flow / Snore Sensor) User Manual
