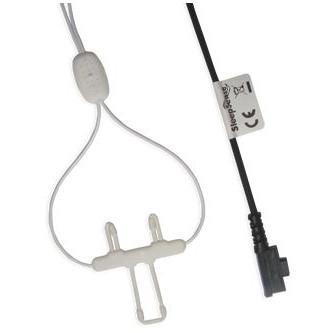

The SleepSense Stardust Thermal Flow Sensor (#613003-SLP) is designed for use with Stardust systems.

Warranty: 6 Months - Free of Defects in Materials and Quality Workmanship.

Comprised of four heat sensitive elements, the flow sensor is placed under the patient's nostrils and produces a signal directly proportional to the temperature changes of air inhaled and exhaled during respiration. It generates a small analog electrical voltage that provides a clear, reliable indication of respiration airflow. The sensor should be connected to the system's thermal-flow input or, when using the interface, to any AC (low level) channel on the recorder.

NOTE: SleepSense items are for professional use only, and are for sale by or on the order of a physician only.

SleepSense Stardust Thermal Flow Sensor Specifications:

• Cable Length: 44 cm.
• Technology: Small rounded TPE center with three prongs.
• Recommended Filter Settings: (or as recommended in the system's instructions)
  • High Pass: 0.1 Hz.
  • Low Pass: 70 Hz.
• Operating Conditions: 40 to 104 ┬░F (5 to 40 ┬░C).
• Storage Temperature: -4 to 140 ┬░F (-20 to 60 ┬░C).
• Operating/Storage Humidity: 5 to 95% (non-condensing).

SleepSense Stardust Thermal Flow Sensor Literature:

SleepSense Thermal Flow Sensors User Manual
