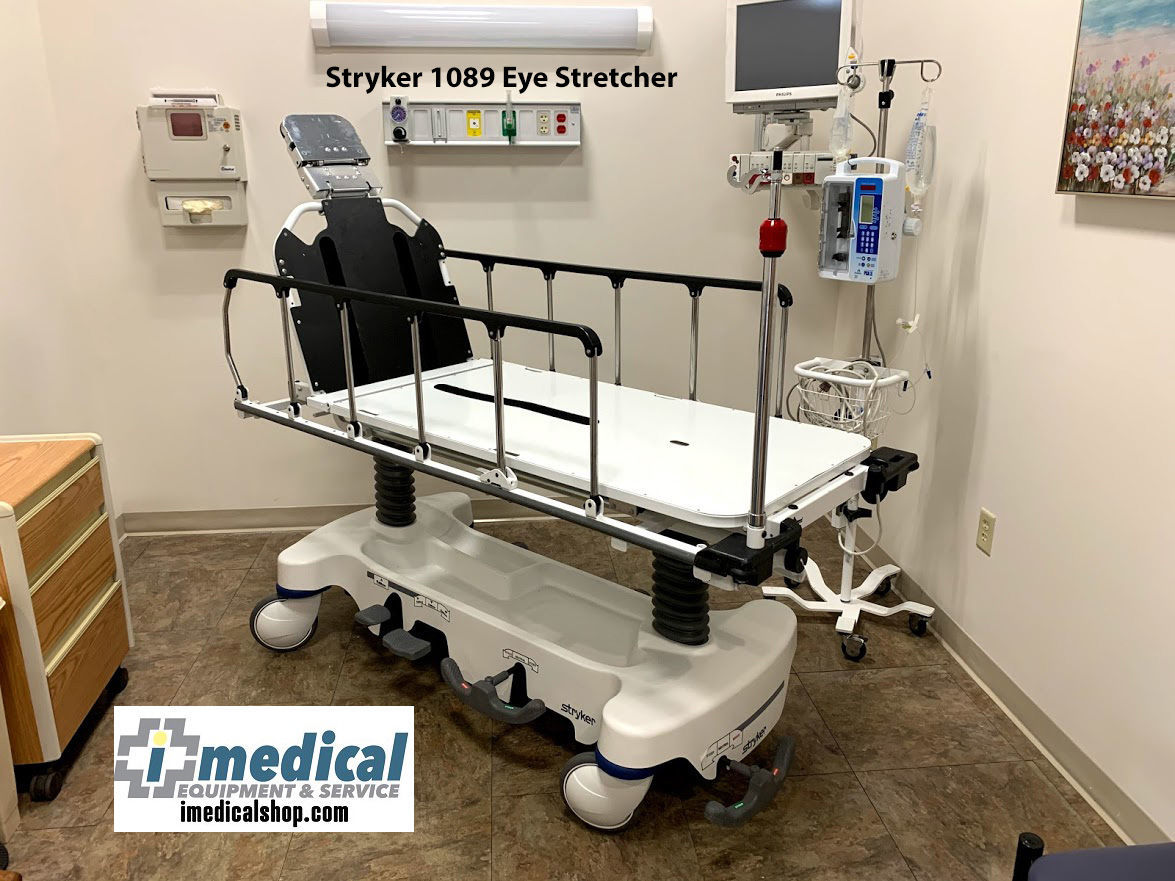

Stryker 1089 Eye Stretcher

A very popular surgical stretcher used for eye surgery, dental surgery and head and neck surgery.

We have this item in stock - contact us for more information.

Standard Features Specifications
Model Number 1089
Overall Length 90" (229 cm)
Overall Width (siderails up) 31.5" (80 cm)
Weight Capacity 500 lbs. (227 kg)
Stryker reserves the right to change specications without notice.
Height Range (to litter top)
Low 22.25" (56.5 cm)
Litter Positioning
Trend./Reverse Trend. ±18˚
Knee Gatch 0˚ - 30˚
Backrest 0˚ - 90˚
High 34" (86.4 cm)
• 3" (8 cm) Enhanced Comfort
Mattress
• 8" (20 cm) Omni Surface casters
with wheel covers
• Dual cylinder pneumatic backrest
• Dual pedestal hydraulics
• Dual side hydraulic controls
• Fold-down siderails
• Four IV receptacles
• Central-locking brakes with
foot-end brake & steer pedal
• Hands-free Trendelenburg
• Integrated storage tray with oxygen
bottle holder
• Retractable fifth-wheel steering
• Rubber bumpers
• Stationary foot-end litter
• Uni-lower pedal
• Dual-articulation, enhanced
clearance headpiece
Headpiece
Patient Surface 26" x 87" (66 x 221 cm)
Headpiece Tilt ±45˚
Height Adjustment ±4.5" (11 cm)
Caster Diameter 8" (20 cm)
