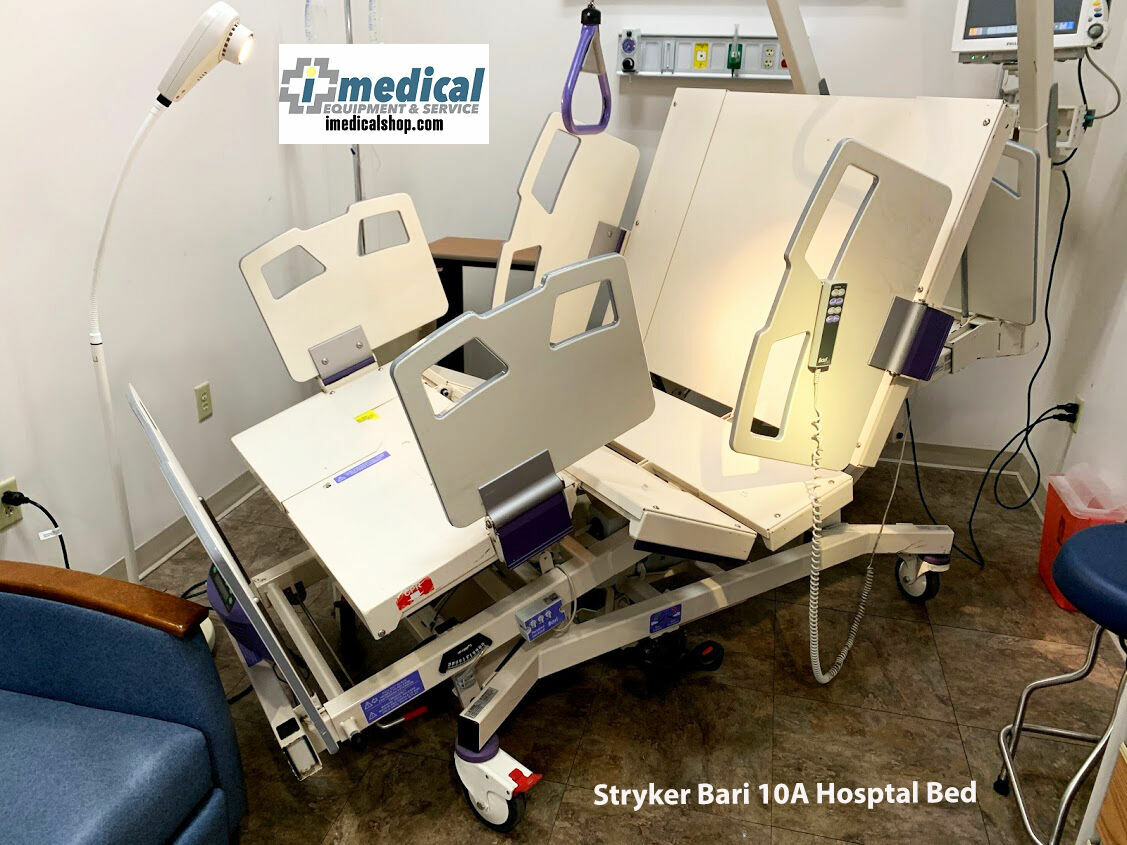

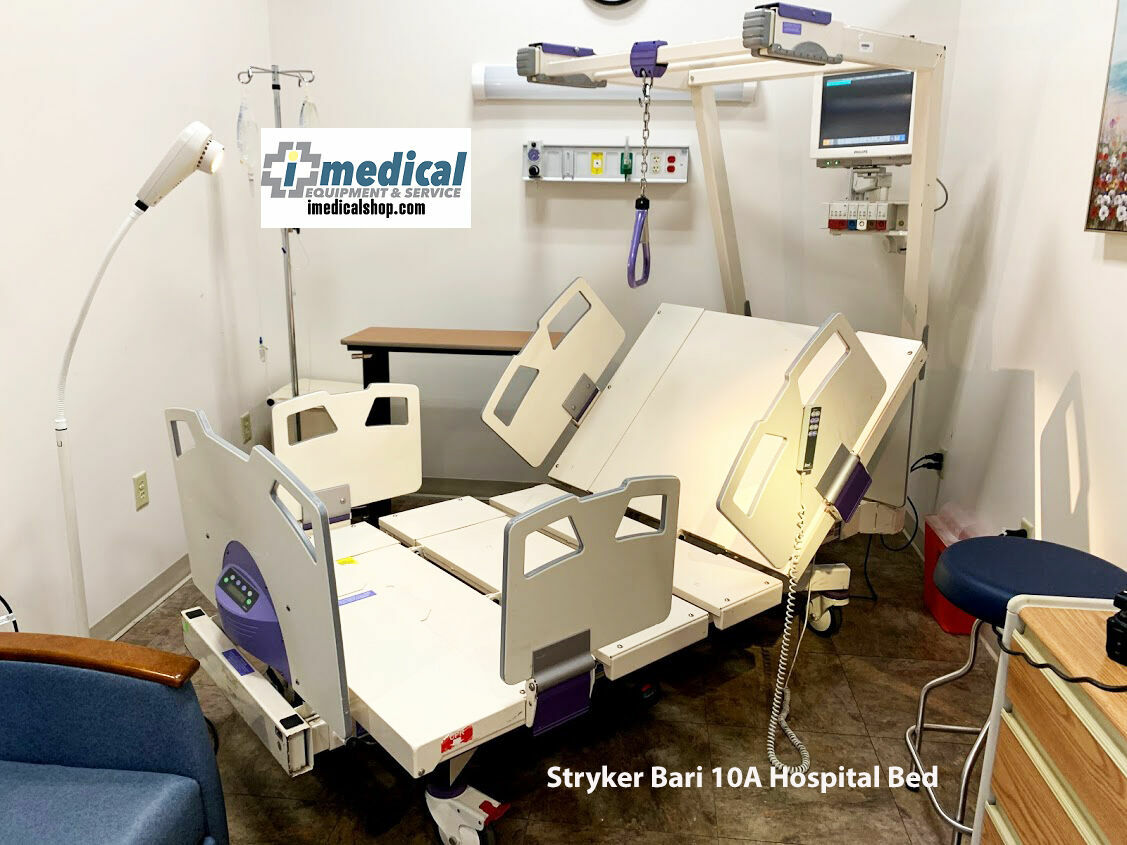

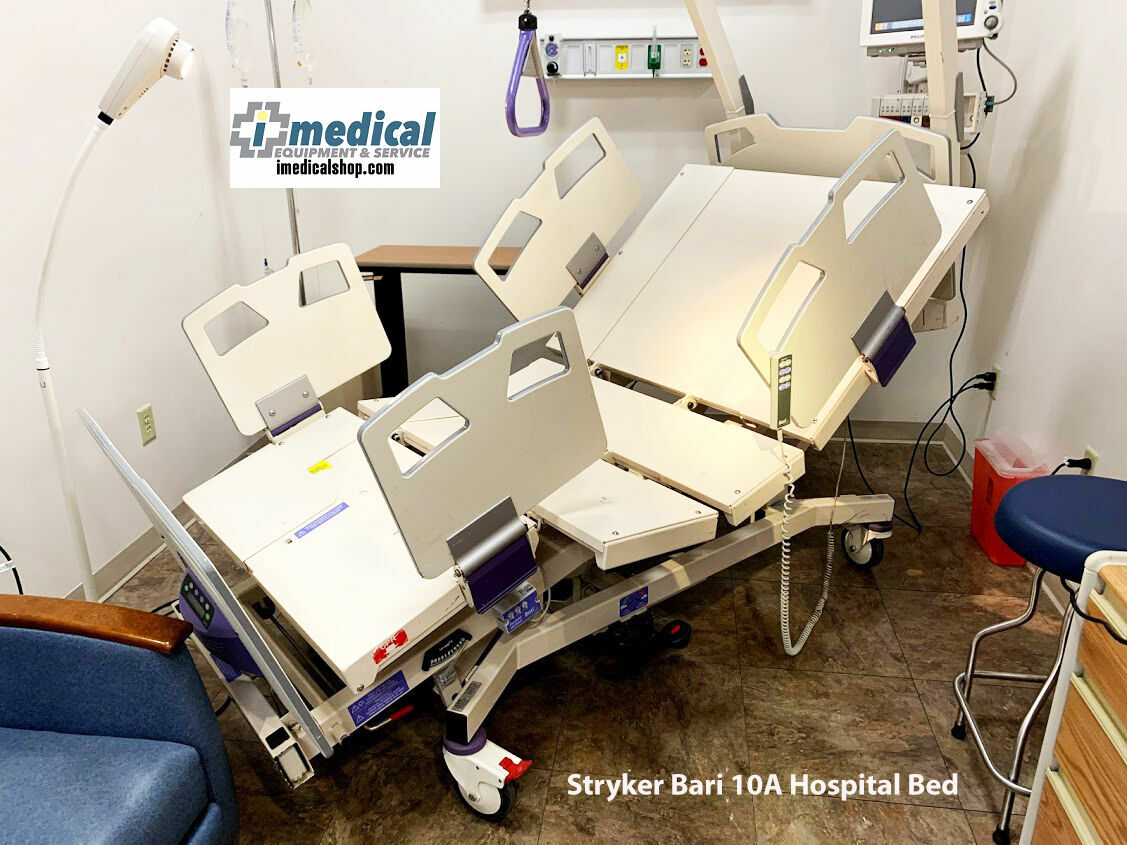

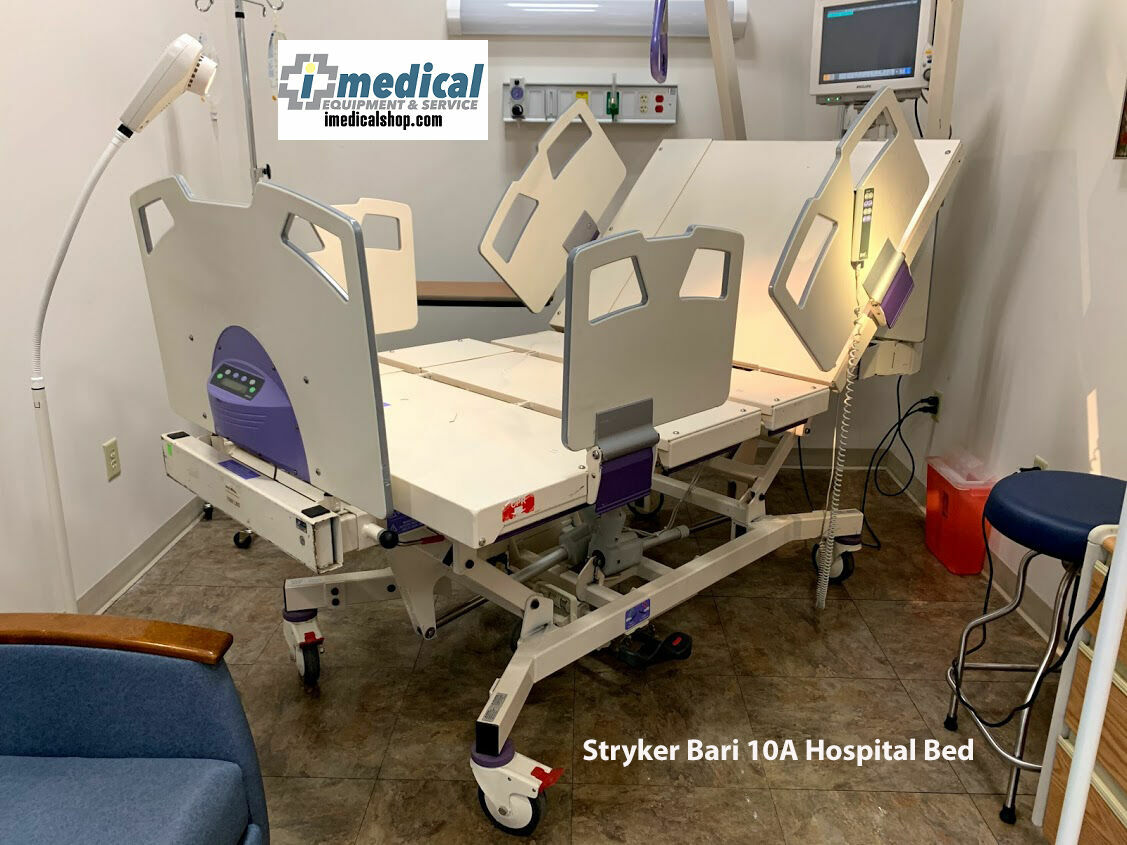

Stryker Bari 10A Bariatric Hospital Bed

This is one of the best bariatric beds made in the USA - it comes in a 36, 42 and 48 inch width.

The Stryker Bari 10A has a 1,050 patient weight capacity.

Contact us for more information on air mattress and foam mattress options.
Cost does not include mattress.
Patient Helper - trapeze is an optional feature - not always included on the beds when we get them
please check with us to ensure this is included if needed

Standard Stryker Bari 10A Bed Features
• 1050 lb. safe working load
• Foot end controls with patient lockouts
• Fully articulated mattress support
platform with independent back and
knee movement, up/down adjustments,
Trendelenburg and Reverse
Trendelenburg positioning
• 36” wide mattress support platform
sections easily expand to 48” wide
• 80” (expandable to 88”) mattress support
platform. Integrated foot end extension
section extends an extra 8” length for
taller residents/patients
• 18.75” to 33.75” height
• Integrated scale system for resident/
patient weight monitoring up to
1050 lbs
• Head and foot end siderails/
assist devices
• One-handed siderail release
• Siderails on head and foot sections fold
down for easy patient access
• Pendant control for all bed functions
with separate selective lock-out to
override functions
• Emergency manual release for mattress
support platform
• Quiet DC motors
• Welded steel tubular frame
• Pan-style mattress support platform
• Wide stable base
• 5” casters
• Bed angle indicators
• Soft-tone frame color
• Head of bed indicator
• Foley bag hooks
• IV traction adapters
• Pump holder
Specifications
Model number 2230
Overall length
Minimum 90” (228.6 cm)
Maximum 98” (248.9 cm)
Overall width 40” (101.6 cm)
Minimum 39” (99.1 cm)
Maximum 52” (132.1 cm)
Safe working load 1050 lb. (476.3 kg)
Bed frame weight 700 lb. (317.5 kg)
Standard height range
High 33.7” (85.6 cm)
Low 18.7” (47.5 cm)
Litter positioning
Maximum back angle 65°
to horizontal
Maximum knee angle 35°
to horizontal
Maximum knee to leg angle 45°
Trend 14.5°
Reverse Trend. 15.3°
Patient surface
Minimum 36” x 80” (91.4 x 203.2 cm)
Maximum 48” x 88” (121.9 x 223.5 cm)
Caster diameter 5” (12.7 cm)
