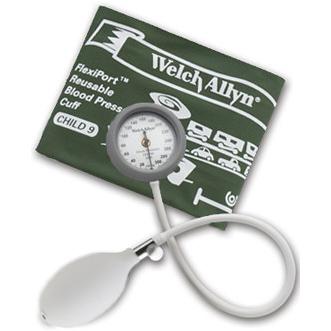

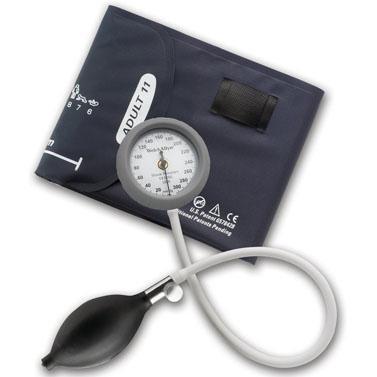

The Welch Allyn DuraShock DS44 Integrated Aneroid Sphygmomanometer is an integrated, cuff-mounted aneroid used to provide accurate blood pressure readings in a professional environment.

Warranty: 5 Years.

The Welch Allyn DuraShock DS44 Integrated Aneroid Sphygmomanometer is gear free and shock resistant. In use, the gauge can be rotated to any orientation desired by the clinician. With gear-free DuraShock technology, you can count on the DS44 Integrated Aneroid to remain in calibration longer than traditional aneroids, providing more accurate readings over time and a lower lifetime cost, helping to improve practice efficiencies and your bottom line.

Features

Welch Allyn DuraShock DS44 Integrated Aneroid Sphygmomanometer Features

• Gear-free DuraShock technology.
• Withstands a 30" drop, AAMI's standard shock resistant requirement.
• Gauge rotates 360 degrees for easy viewing from any angle.
• Premium inflation system; lightweight for patient comfort.
• Certified accuracy to +/- 3 mmHg.
• Unsurpassed reliability with a unique integrated, cuff-mounted design.
• Gauge snaps directly into cuff for quick cuff changes.
• Latex-Free.

Specifications

Welch Allyn DuraShock DS44 Integrated Aneroid Sphygmomanometer Specifications

• Accuracy: +/- 3 mmHg.
• Operational Range: 0 to 300 mmHg.
• Displayed Range: 0 to 300 mmHg.
• Indication Type: Radial Scale.
• Scale Graduation: Increments of 2 mmHg.
• Pointer Movement: No stop pin.
• Tube Adapter: Integrated, 1 or 2 tube adapter.
• Pressure Generation: Bulb.
• Pressure Reduction: Air Release Valve.
• Environmental Conditions:
  • Storage Temperature: -20 degrees C to 70 degrees C (-4 degrees F to 158 degrees F).
  • Storage Relative Humidity: 15% to 95% (noncondensing).
  • Operating Temperature: 10 degrees C to 40 degrees C (50 degrees F to 104 degrees F).
  • Operating Relative Humidity: 15% to 90% (noncondensing).

Configurations

Welch Allyn DuraShock DS44 Integrated Aneroid Sphygmomanometer Configurations

• #DS44: Gauge Only (requires Adapter (#1DSLC) for FlexiPort Cuff Connection).
• #DS44-09: Inflation Bulb and Valve; Size-09 Child, FlexiPort Reusable, 1-Tube Cuff.
• #DS44-10: Inflation Bulb and Valve; Size-10 Small Adult, FlexiPort Reusable, 1-Tube Cuff.
• #DS44-11: Inflation Bulb and Valve; Size-11 Adult, FlexiPort Reusable, 1-Tube Cuff.
• #DS44-12: Inflation Bulb and Valve; Size-12 Large Adult, FlexiPort Reusable, 1-Tube Cuff.
• #DS44-11C: Inflation Bulb and Valve, Size-11 Adult, FlexiPort Reusable, 1-Tube Cuff, Zipper Case.
• #DS44-11V: Inflation Bulb and Valve, Size-11 Adult, FlexiPort Reusable, 1-Tube Cuff, Color Bumper Variety Pack (Red, Green, Blue, Purple).
• #DS44-09P: Inflation Bulb and Valve; Size-09 Child Print, FlexiPort Reusable, 1-Tube Cuff.
• #DS44-11CV: Inflation Bulb, Valve, Cuff Size-11 Adult, Color Bumper Variety Pack (Red, Green, Blue, Purple), Zipper Case.
• #DS44-MC: Inflation Bulb and Valve; Four-Cuff Kit: Size-09 (Child Print) to Size-12; FlexiPort Reusable, 1-Tube Cuffs; Qty. 4.

Literature

Welch Allyn DuraShock DS44 Integrated Aneroid Sphygmomanometer Literature

Welch Allyn DuraShock Sphygmomanometers Directions for Use

Welch Allyn DuraShock Sphygmomanometers Brochure
